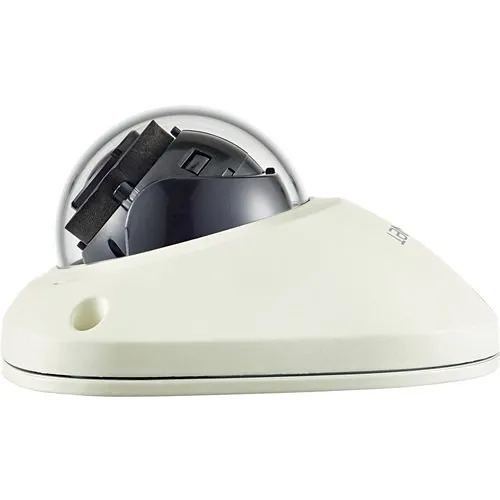

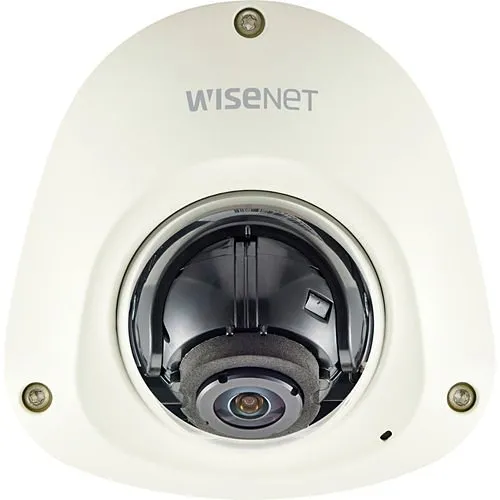

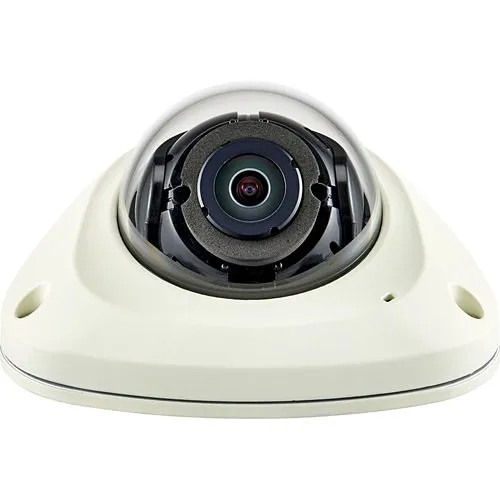

Hanwha XNV-6012M X-Series 2MP Mobile Outdoor Vandal Dome Camera, 2.4mm Fixed Lens, Ivory

SKU: XNV-6012M Hanwha Vision
Hanwha Techwin XNV-6012M 2 Megapixel Network Camera - Dome
Product images for Hanwha XNV-6012M X-Series 2MP Mobile Outdoor Vandal Dome Camera, 2.4mm Fixed Lens, Ivory. 4 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Rugged outdoor protection (IP66, IK10, NEMA 4X) to ensure continuous surveillance in harsh environments
  • Wide 135° field of view with a 2.4mm fixed lens for broad coverage and reduced blind spots on vehicles and poles
  • Enhanced image clarity in challenging light with 2MP Full HD, 150dB WDR and 60 fps for smooth, actionable video
  • Intelligent analytics and sound classification to reduce false alarms and accelerate incident response
  • Simple installation and network power via PoE plus local backup with SD card support for uninterrupted monitoring

Quick Specifications

Product Model
XNV-6012M
Brand Name
Hanwha Vision
Product Name
2MP Mobile Vandal Dome
Product Type
Network Camera
View Full Technical Specifications

Frequently Bought Together

This Item
Hanwha XNV-6012M X-Series 2MP Mobile Outdoor Vandal Dome Camera, 2.4mm Fixed Lens, Ivory

Hanwha XNV-6012M X-Series 2MP Mobile Outdoor Vandal Dome Camera, 2.4mm Fixed Lens, Ivory

$410.04

Frequently Bought Together (3 items)

4 items selected

Total: $690.31

Explore the details

Product information

XNV-6012M

Overview

Built for reliable security and situational awareness on the move, the Hanwha Vision XNV-6012M X-Series mobile vandal dome camera delivers durable, high-quality surveillance where it matters most. This IP Mobile & Dashboard Cameras-class device combines 2MP Full HD imaging with a 2.4mm fixed lens and a wide 135° field of view to capture expansive scenes from vehicles, buses, and outdoor poles. Advanced 150dB WDR and 60 fps performance preserve detail in extreme contrast and fast-motion environments, while WiseStream II codecs and PoE reduce bandwidth and simplify network deployment. Built-in analytics — including motion, loitering, face and audio detection — and sound classification help prioritize events and cut false alerts, improving operational monitoring for transit, law enforcement, and fleet operators. Certified to withstand dust, water and impacts (IP66, IK10, NEMA 4X), the XNV-6012M secures exposed installations without compromising image performance. Ideal for security teams needing robust mobile surveillance, this Hanwha Vision camera pairs resilient hardware with smart analytics to keep assets, passengers and property safer. Contact us to specify this camera for your fleet or outdoor monitoring project.

Features

  • Rugged outdoor protection (IP66, IK10, NEMA 4X) to ensure continuous surveillance in harsh environments
  • Wide 135° field of view with a 2.4mm fixed lens for broad coverage and reduced blind spots on vehicles and poles
  • Enhanced image clarity in challenging light with 2MP Full HD, 150dB WDR and 60 fps for smooth, actionable video
  • Intelligent analytics and sound classification to reduce false alarms and accelerate incident response
  • Simple installation and network power via PoE plus local backup with SD card support for uninterrupted monitoring
45 of 45 specifications
Technical specifications for Hanwha XNV-6012M X-Series 2MP Mobile Outdoor Vandal Dome Camera, 2.4mm Fixed Lens, Ivory
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name 2MP Mobile Vandal Dome
Product Type Network Camera
Product Model XNV-6012M
Product Series X
Manufacturer Part Number XNV-6012M
Technical Information
Lens Type Fixed
Field of View H : 135.4° / V : 71.2° / D : 161.6°
Video Formats H.264, H.265, MPEG-4
Maximum Aperture f/2
Maximum Frame Rate 60fps
Minimum Focal Length 2.4mm
Connectivity Technology Wired
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.9
Maximum Operating Temperature 131°F (55°C)
Minimum Operating Temperature -22°F (-30°C)
Exposure
Longest Shutter Speed 2 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.4mm
Lens Included Yes
Maximum Focal Length 2.4mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Depth 3.9"
Width 3.9"
Height 2"
Weight 10.41 oz
Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof
Form Factor Dome
Product Information
Mount Type Pole Mount
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Alarm Triggering, Audio Compression, Auto Tracking, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, White Balance
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
