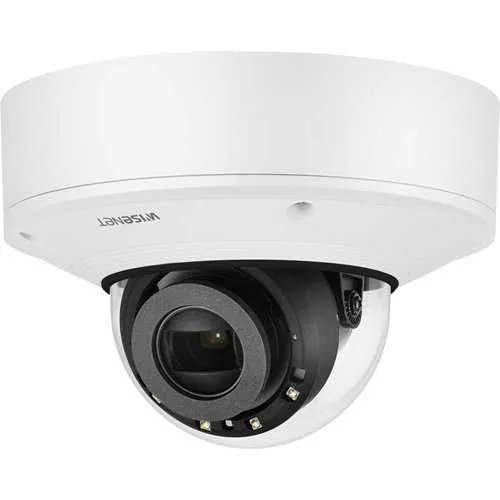

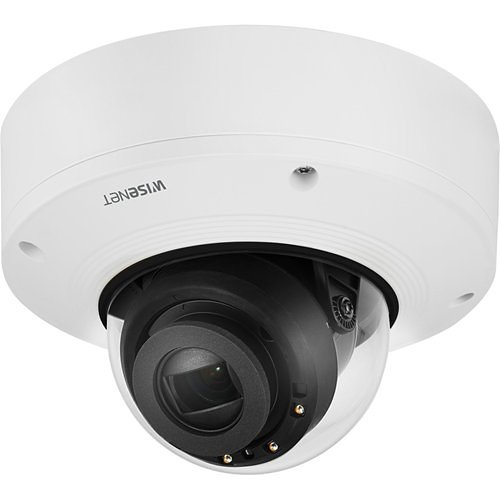

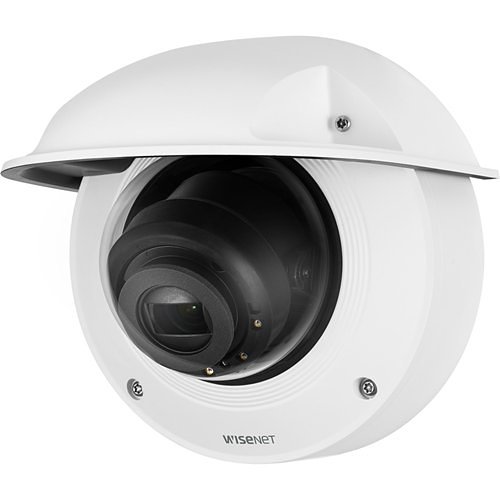

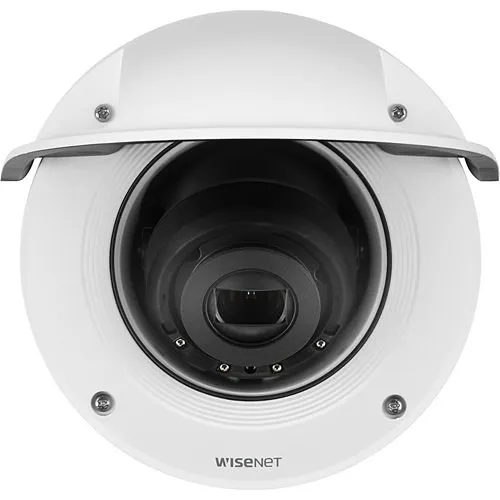

Hanwha XNV-6081R X-Series Plus 2MP IR Outdoor Vandal Dome Camera, 2.8-12mm Varifocal Lens, White

SKU: XNV-6081R Hanwha Vision
Wisenet XNV-6081R 2 Megapixel Network Camera - Dome
Product images for Hanwha XNV-6081R X-Series Plus 2MP IR Outdoor Vandal Dome Camera, 2.8-12mm Varifocal Lens, White. 6 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Reliable 24/7 outdoor surveillance with long-range IR (up to 164') for clear night-time monitoring
  • Motorized 2.8–12mm varifocal lens lets you remotely adjust field of view to cover entrances, lots, or perimeters without reinstalling
  • Rugged IP67/IP6K9K and IK10-rated housing protects against weather, dust, and vandalism for lower maintenance and longer service life
  • PoE support and remote management reduce installation time and wiring costs while enabling centralized monitoring
  • Advanced image optimization (150 dB WDR, WiseStream II, H.265) delivers clearer evidence in challenging lighting and lowers storage and bandwidth needs
  • On-board analytics and dual SD card recording offer immediate incident detection and reliable edge backup for uninterrupted security operations

Quick Specifications

Product Model
XNV-6081R
Brand Name
Hanwha Vision
Product Name
2MP IR Vandal Dome
Product Type
Dome Camera
View Full Technical Specifications

Frequently Bought Together

Explore the details

Product information

XNV-6081R

Overview

Protect critical assets and maintain continuous visibility in high-risk outdoor environments with the Hanwha Vision XNV-6081R X-Series Plus 2MP IR vandal dome camera. This outdoor dome camera delivers smooth 1080p video at up to 60 fps and a motorized 2.8–12mm varifocal lens so you can fine-tune coverage for driveways, parking lots, building perimeters, or retail entrances without reworking mounts. High-powered IR LEDs provide up to 164' of night vision, while 150 dB WDR and WiseStream II ensure usable, low-bandwidth footage in backlit or foggy conditions. Built for demanding sites, the XNV-6081R's IP67/IP6K9K and IK10-rated housing resists weather and vandalism, and PoE streamlines installation by running power and data over a single cable. Practical security features like tamper detection, motion and audio events, and dual SD card slots give you faster incident response and dependable edge recording. NDAA-compliant and optimized for networked monitoring, this Hanwha Vision dome camera is ideal for commercial, municipal, and industrial surveillance deployments—order now to upgrade your perimeter monitoring and evidence capture.

Features

  • Reliable 24/7 outdoor surveillance with long-range IR (up to 164') for clear night-time monitoring
  • Motorized 2.8–12mm varifocal lens lets you remotely adjust field of view to cover entrances, lots, or perimeters without reinstalling
  • Rugged IP67/IP6K9K and IK10-rated housing protects against weather, dust, and vandalism for lower maintenance and longer service life
  • PoE support and remote management reduce installation time and wiring costs while enabling centralized monitoring
  • Advanced image optimization (150 dB WDR, WiseStream II, H.265) delivers clearer evidence in challenging lighting and lowers storage and bandwidth needs
  • On-board analytics and dual SD card recording offer immediate incident detection and reliable edge backup for uninterrupted security operations
51 of 51 specifications
Technical specifications for Hanwha XNV-6081R X-Series Plus 2MP IR Outdoor Vandal Dome Camera, 2.8-12mm Varifocal Lens, White
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 2MP IR Vandal Dome
Product Type Dome Camera
Product Model XNV-6081R
Product Series X
Country of Origin VN
Manufacturer Part Number XNV-6081R
Technical Information
Aspect Ratio 16:9
Optical Zoom 4.3x
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture F1.4
Night Vision Type Infrared
Maximum Frame Rate 60fps
Wide Dynamic Range Yes
Minimum Focal Length 2.80mm
Connectivity Technology Wired
Field of View (Vertical) 62.80°
Field of View (Horizontal) 119.5°
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Night Vision Distance 164.04'
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66, IP67, IP6K9K
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 90% RH
Maximum Operating Temperature 140°F
Minimum Operating Temperature -58°F
Exposure
Minimum Illumination 0.0150lux
Longest Shutter Speed 1/12000 Second
Shortest Shutter Speed 2 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8-12mm
Minimum Aperture f/3.6
Maximum Focal Length 12.00mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Width 7.10"
Height 4.90"
Weight 3.86lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Power Description
Input Voltage 12V DC, 24V AC
Product Information
Diameter 7.09"
Mount Type Conduit Box Mount
Storage
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
