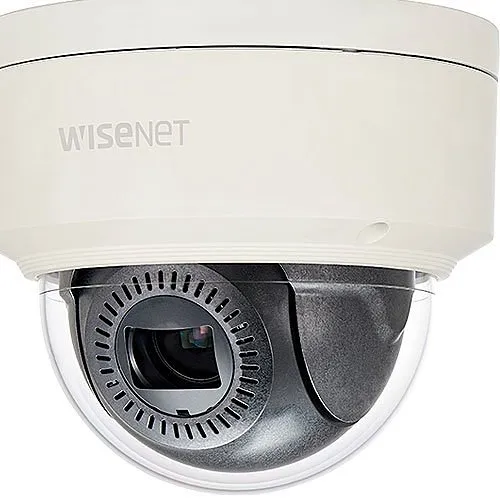

Hanwha XNV-6085 X-Series eXtraLUX 2MP Outdoor Vandal Dome Camera, 4.1-16.4mm Varifocal Lens, Ivory
Image of 2
Key Features
- Superior low-light performance with an f/0.94 lens and eXtraLUX sensor, delivering clear 24/7 surveillance without costly auxiliary lighting
- Built for extreme outdoor use (IP67, IK10, NEMA 4X) to maintain reliable monitoring in wet, dusty, or vandal-prone areas
- Motorized 4.1–16.4mm varifocal lens with PTRZ and up to 60 fps ensures flexible coverage and smooth capture of fast-moving scenes
- H.265 with WiseStream II compression reduces bandwidth and storage needs while preserving critical image detail for long-term retention
- On-board analytics, dual SD storage and PoE/12V/24V power options simplify deployment and cut operational overhead
Quick Specifications
- Product Model
- XNV-6085
- Brand Name
- Hanwha Vision
- Product Line
- extraLUX
- Product Name
- 2MP eXtraLUX Vandal Outdoor PTRZ Camera
Frequently Bought Together
Hanwha XNV-6085 X-Series eXtraLUX 2MP Outdoor Vandal Dome Camera, 4.1-16.4mm Varifocal Lens, Ivory
$856.80
10 items selected
Total: $2,821.26
Explore the details
Product information
XNV-6085
Overview
Optimize perimeter and facility security with the Hanwha Vision XNV-6085 2MP eXtraLUX vandal dome camera — engineered for demanding outdoor surveillance and continuous monitoring. This HanwhaVision dome camera pairs a low-light F0.94 lens and eXtraLUX sensor to capture usable color images in near-dark conditions, while a motorized 4.1–16.4mm varifocal lens and PTRZ controls let you quickly adjust field of view to match site needs. Record smooth, detailed video up to 60 fps in Full HD and reduce network load with H.265 plus WiseStream II compression. Robust ingress and impact protection (IP67, IK10, NEMA 4X) and wide temperature tolerance keep the camera online in harsh environments, and built-in analytics with sound classification help minimize false alarms and accelerate event response. Dual SD card support and PoE make installation and redundancy straightforward for security teams. Ideal for perimeter, retail, campus, and critical infrastructure monitoring — add the XNV-6085 to your security deployments for reliable, high-performance surveillance.
Features
- Superior low-light performance with an f/0.94 lens and eXtraLUX sensor, delivering clear 24/7 surveillance without costly auxiliary lighting
- Built for extreme outdoor use (IP67, IK10, NEMA 4X) to maintain reliable monitoring in wet, dusty, or vandal-prone areas
- Motorized 4.1–16.4mm varifocal lens with PTRZ and up to 60 fps ensures flexible coverage and smooth capture of fast-moving scenes
- H.265 with WiseStream II compression reduces bandwidth and storage needs while preserving critical image detail for long-term retention
- On-board analytics, dual SD storage and PoE/12V/24V power options simplify deployment and cut operational overhead
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Line | extraLUX |
| Product Name | 2MP eXtraLUX Vandal Outdoor PTRZ Camera |
| Product Type | PTRZ Camera |
| Product Model | XNV-6085 |
| Product Series | X |
| Country of Origin | KR |
| Manufacturer Part Number | XNV-6085 |
| Technical Information | |
| Aspect Ratio | 16:9 |
| Optical Zoom | 4.0x |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual |
| Maximum Aperture | f/0.94 |
| Maximum Frame Rate | 60fps |
| Wide Dynamic Range | Yes |
| Minimum Focal Length | 4.10mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 54.00° |
| Field of View (Horizontal) | 100.0° |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 90% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Minimum Illumination | 0.0004lux |
| Longest Shutter Speed | 1/12000 Second |
| Shortest Shutter Speed | 2 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 4.1-16.4mm |
| Lens Included | Yes |
| Minimum Aperture | f/0.94 |
| Maximum Focal Length | 16.40mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | Ivory |
| Height | 5.50" |
| Durability | Dustproof, Impact Resistant, Vandal Resistant, Waterproof |
| Form Factor | Dome |
| Power Description | |
| Input Voltage | 12V DC, 24V AC |
| Product Information | |
| Diameter | 6.30" |
| Mount Type | Box Mount |
| Storage | |
| Storage Type | SD Card |
| Recording Formats | H.264, H.265 / HEVC |
| Video | |
| Graphics Mode | Full HD |
| Maximum Resolution | 1280 x 720 |
| Analog Video Signal Format | CVBS |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | 2D Digital Noise Reduction (2DNR), 3D Digital Noise Reduction, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
