Hanwha XNV-6120R X-Series 2MP Outdoor Vandal Dome Camera, 5.2-62.4mm Varifocal Lens, Ivory

SKU: XNV-6120 Hanwha Vision

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Wisenet XNV-6120 2 Megapixel Outdoor Full HD Network Camera - Color - Dome

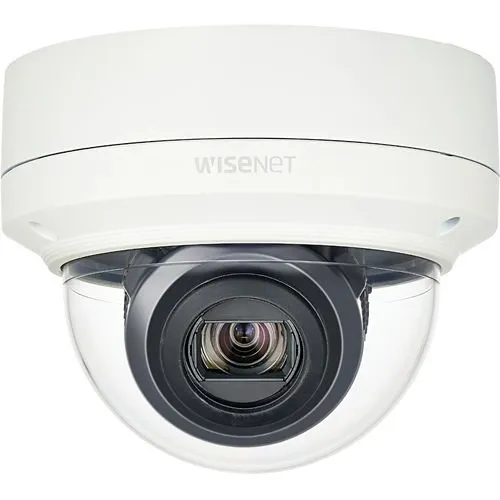

Product images for Hanwha XNV-6120R X-Series 2MP Outdoor Vandal Dome Camera, 5.2-62.4mm Varifocal Lens, Ivory. 2 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Identify faces and license plates from a distance with 12x optical zoom (5.2–62.4mm) and Full HD 1080p at up to 60 fps
  • Maintain usable footage in challenging light with 150dB WDR and true Day/Night imaging for reliable perimeter surveillance
  • Reduce bandwidth and storage costs with H.265 plus WiseStream II while preserving image quality for long-term monitoring
  • Hardened outdoor protection (IP67, IK10, NEMA 4X) and wide temperature range for dependable, vandal-resistant installation
  • Built-in analytics and sound classification cut false alarms and speed incident response; supports PoE and dual SD for flexible deployment

Quick Specifications

Product Model
XNV-6120
Brand Name
Hanwha Vision
Product Name
2MP Outdoor Network 12X Optical Zoom Dome Camera
Product Type
Network Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

For demanding outdoor security and continuous monitoring, the Hanwha Vision XNV-6120R X-Series 2MP Outdoor Vandal Dome Camera delivers clear, actionable video so you can detect, verify and respond quickly. This Hanwha Vision dome camera combines Full HD 1080p at 60 fps with a 12x varifocal optical zoom (5.2–62.4mm) to capture detailed evidence across large perimeters, parking facilities and campus environments. Advanced image processing—150dB WDR, true Day/Night, defog and DIS—ensures readable footage in backlight, glare or low-light conditions. Efficient H.265 encoding with WiseStream II lowers bandwidth and storage needs, while on-board dual SD support and PoE simplify installation and redundancy. Rugged IP67/IK10/NEMA 4X construction and -40°C to 55°C rated operation keep the camera working in harsh outdoor conditions. Integrated video analytics and sound classification reduce false alerts and improve situational awareness for security teams. Ideal for perimeter security, transportation hubs and commercial sites—upgrade your surveillance system with the XNV-6120R to improve detection, evidence capture and operational efficiency.

Features

  • Identify faces and license plates from a distance with 12x optical zoom (5.2–62.4mm) and Full HD 1080p at up to 60 fps
  • Maintain usable footage in challenging light with 150dB WDR and true Day/Night imaging for reliable perimeter surveillance
  • Reduce bandwidth and storage costs with H.265 plus WiseStream II while preserving image quality for long-term monitoring
  • Hardened outdoor protection (IP67, IK10, NEMA 4X) and wide temperature range for dependable, vandal-resistant installation
  • Built-in analytics and sound classification cut false alarms and speed incident response; supports PoE and dual SD for flexible deployment
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name 2MP Outdoor Network 12X Optical Zoom Dome Camera
Product Type Network Camera
Product Model XNV-6120
Product Series X
Manufacturer Part Number XNV-6120
Technical Information
Lens Type Varifocal
Optical Zoom 12x
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG, MPEG-4
Maximum Aperture f/1.6
Maximum Frame Rate 60fps
Minimum Focal Length 5.2mm
Connectivity Technology Wired
Field of View (Vertical) 32.19°
Field of View (Horizontal) 54.58°
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66, IP67
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.9
Maximum Operating Temperature 131°F (55°C)
Minimum Operating Temperature -40°F (-40°C)
Exposure
Longest Shutter Speed 2 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 5.2-62.4mm
Lens Included Yes
Minimum Aperture f/3
Maximum Focal Length 62.4mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Height 5.1"
Weight 2.17lb
Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof
Form Factor Dome
Power Description
Input Voltage 12V DC, 24V AC
Product Information
Diameter 6.3"
Mount Type Box Mount, Ceiling Mount, Flush Mount, Pole Mount, Wall Mount
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format CVBS
Warranty
Limited Warranty 3-Year
Miscellaneous
Features 2D Digital Noise Reduction (2DNR), 3D Digital Noise Reduction, Alarm Triggering, Audio Compression, Audio Detection, Auto Gain Control, Automatic Defog, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Image Stabilization, Enter/Exit Detector, Face Detection, Highlight Compensation (HLC), Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Indoor/Outdoor Outdoor
Country of Origin KR
Impact Protection Rating IK10
