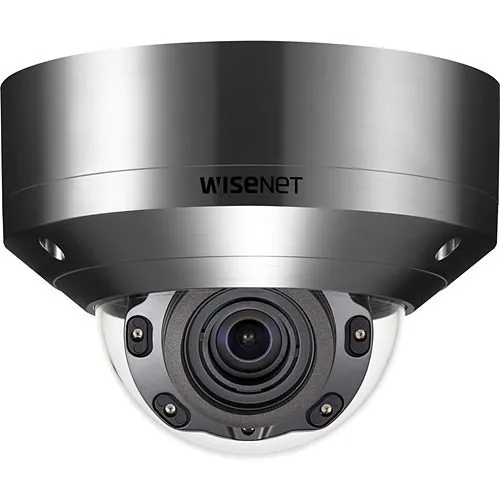

Hanwha XNV-8080RSA X-Series 5MP IR Outdoor Vandal Dome Camera, 3.9-9.4mm Varifocal Lens, Stainless Steel
Key Features
- Capture clear, actionable 5MP video at 30fps with 120dB WDR for reliable identification in challenging lighting.
- Flexible coverage via motorized 3.9–9.4mm varifocal lens and 164 ft IR range for day/night outdoor monitoring.
- Rugged stainless-steel housing with IK10+ impact rating and IP66/IP6K9K/NEMA 4X protection for tamper- and weather-resistant deployments.
- Reduce bandwidth and storage costs with H.265 plus WiseStream II and dual SD card support for edge recording.
- On-board analytics and sound classification minimize false alarms and streamline security team response.
Quick Specifications
- Product Model
- XNV-8080RSA
- Brand Name
- Hanwha Vision
- Product Name
- 5MP Network Stainless IR Dome Camera
- Product Type
- Network Camera
Frequently Bought Together
Hanwha XNV-8080RSA X-Series 5MP IR Outdoor Vandal Dome Camera, 3.9-9.4mm Varifocal Lens, Stainless Steel
$1,346.40
8 items selected
Total: $3,682.61
Product Information Tabs
Overview
Designed for demanding outdoor security, the Hanwha Vision XNV-8080RSA X-Series dome camera delivers dependable surveillance where reliability matters most. This stainless-steel vandal dome provides crisp 5MP imagery at 30fps and 120dB WDR, making it easier to identify people and vehicles in high-contrast scenes. The motorized 3.9–9.4mm varifocal lens and 164 ft (50 m) IR extend coverage and let you adjust views remotely to suit parking lots, perimeters, and critical infrastructure.
Built for tough environments, the XNV-8080RSA meets IP66/IP6K9K and NEMA 4X ratings and withstands impacts (IK10+) and extreme temperatures, reducing maintenance and downtime. Advanced H.265 compression with WiseStream II lowers bandwidth and storage needs while dual SD slots provide resilient edge recording. Intelligent analytics and audio classification reduce nuisance alerts and improve operator efficiency for 24/7 monitoring. PoE support and a USB setup port simplify installation and integration into existing security networks.
Ideal for outdoor surveillance of transportation hubs, industrial sites, and city monitoring, the Hanwha Vision XNV-8080RSA is a robust choice for professional security deployments — order now or contact our team to specify for your project.
Features
- Capture clear, actionable 5MP video at 30fps with 120dB WDR for reliable identification in challenging lighting.
- Flexible coverage via motorized 3.9–9.4mm varifocal lens and 164 ft IR range for day/night outdoor monitoring.
- Rugged stainless-steel housing with IK10+ impact rating and IP66/IP6K9K/NEMA 4X protection for tamper- and weather-resistant deployments.
- Reduce bandwidth and storage costs with H.265 plus WiseStream II and dual SD card support for edge recording.
- On-board analytics and sound classification minimize false alarms and streamline security team response.
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Product Name | 5MP Network Stainless IR Dome Camera |
| Product Type | Network Camera |
| Product Model | XNV-8080RSA |
| Product Series | X |
| Manufacturer Part Number | XNV-8080RSA |
| Technical Information | |
| Lens Type | Varifocal |
| Optical Zoom | 2.4x |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/2.4 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.9mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 67.2° |
| Field of View (Horizontal) | 92.1° |
| Effective Camera Resolution | 5MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 164.04 ft |
| Certifications | |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66, IP6K9K |
| Display & Graphics | |
| Maximum Video Resolution | 1600 x 1200 |
| Environmental Conditions | |
| Operating Humidity | 0.9 |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Exposure | |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/12000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 3.9-9.4mm |
| Lens Included | Yes |
| Minimum Aperture | f/1.3 |
| Maximum Focal Length | 9.4mm |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | XNV-8080RS |
| Physical Characteristics | |
| Color | Silver |
| Weight | 6.17 lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Dome |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 6.4" |
| Mount Type | Corner Mount, Pole Mount, Wall Mount |
| Storage | |
| Recording Formats | HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Analog Video Signal Format | CVBS |
| Miscellaneous | |
| Features | Audio Compression, Auto Tracking, Back Light Compensation (BLC), Built-in HLC, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Face Detection, Motion Detection, Privacy Masking |
| Indoor/Outdoor | Indoor, Outdoor |
| Impact Protection Rating | IK10 |
