Hanwha XNV-8081R X-Series Plus 5MP IR Outdoor Vandal Dome Camera, 3.9-9.4mm Fixed Lens, White

SKU: XNV-8081R Hanwha Vision
Wisenet XNV-8081R 5 Megapixel Network Camera - Dome

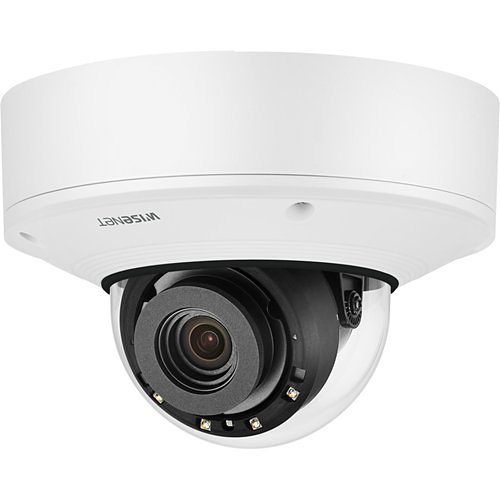

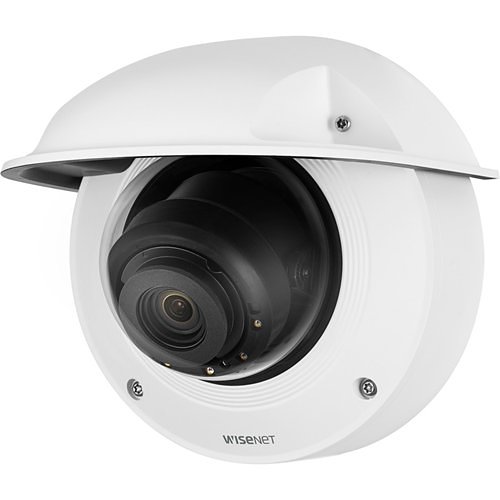

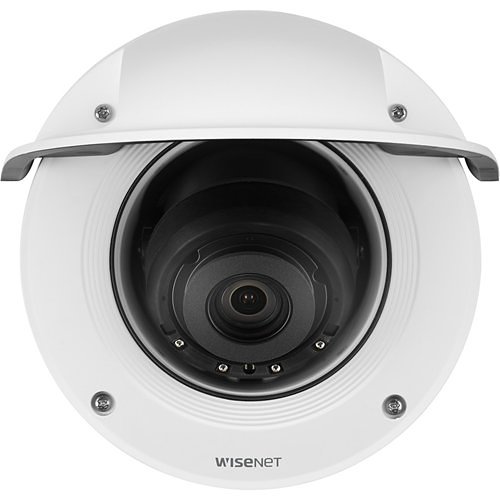

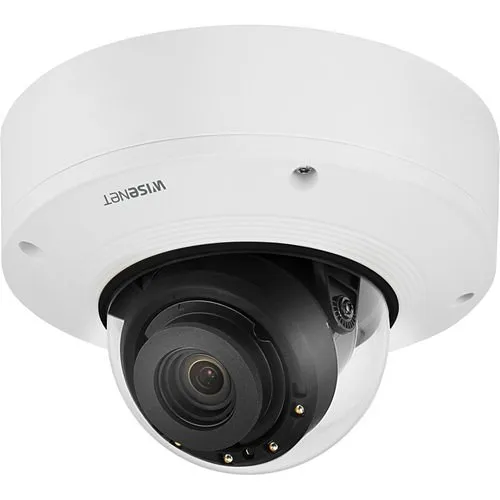

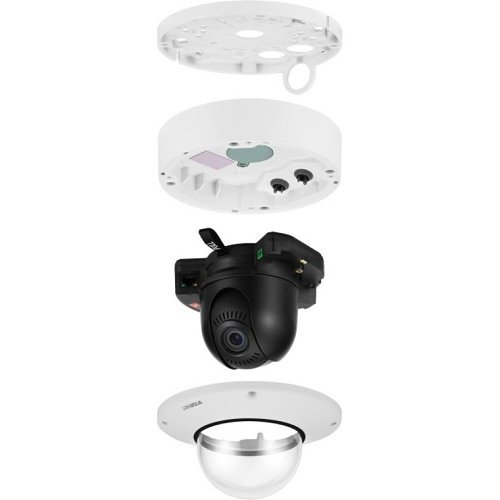

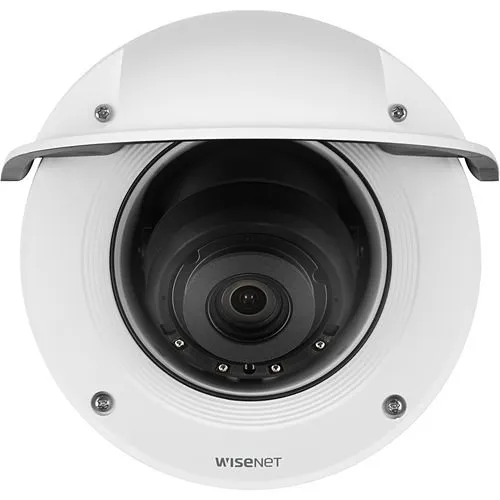

Product images for Hanwha XNV-8081R X-Series Plus 5MP IR Outdoor Vandal Dome Camera, 3.9-9.4mm Fixed Lens, White. 6 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Crisp 5MP imaging for actionable surveillance: capture identifiable faces and license plates for reliable evidence.
  • 164 ft IR night vision and Day/Night performance ensure continuous monitoring in low- or no-light environments.
  • Rugged outdoor design (IP67/IP6K9K, IK10+) protects against weather and vandalism for installations in high-risk or public areas.
  • Efficient H.265 compression and WiseStreamII reduce bandwidth and storage costs while maintaining image quality.
  • Built-in analytics (loitering, directional, tamper, motion, audio events) enable proactive security workflows and faster incident response.
  • Dual SD card slots (up to 512GB) and PoE-ready networking support local failover recording and flexible deployment options.

Quick Specifications

Brand Name
Hanwha Vision
Manufacturer
Hanwha Group
Product Line
Wisenet
Product Name
5 MP Vandal-Resistant IR Outdoor Network Dome Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Protect outdoor perimeters and high-traffic public spaces with the Hanwha Vision XNV-8081R X-Series Plus 5MP vandal dome camera — a network camera built for continuous, evidence-grade surveillance. The camera delivers sharp 5MP resolution and a wide 3.9–9.4mm varifocal field of view, so security teams can identify people and vehicles with confidence. With up to 164 ft of infrared range and Day/Night (ICR) capabilities, it maintains clear monitoring in low-light and no-light conditions.

Designed for demanding installations, this Hanwha Vision dome pairs IK10+ impact resistance with IP67/IP6K9K ingress protection to withstand vandalism, dust, and harsh weather. Intelligent features like WiseStreamII/H.265 compression, dual SD storage (up to 512GB), and built-in analytics (loitering, directional detection, tamper and audio events) reduce storage costs and speed incident investigations. Ideal for parking lots, campuses, retail exteriors, and industrial sites, the XNV-8081R delivers reliable, scalable security monitoring. Contact sales or add to your next site specification to upgrade outdoor security with a durable, high-performance network camera.

Features

  • Crisp 5MP imaging for actionable surveillance: capture identifiable faces and license plates for reliable evidence.
  • 164 ft IR night vision and Day/Night performance ensure continuous monitoring in low- or no-light environments.
  • Rugged outdoor design (IP67/IP6K9K, IK10+) protects against weather and vandalism for installations in high-risk or public areas.
  • Efficient H.265 compression and WiseStreamII reduce bandwidth and storage costs while maintaining image quality.
  • Built-in analytics (loitering, directional, tamper, motion, audio events) enable proactive security workflows and faster incident response.
  • Dual SD card slots (up to 512GB) and PoE-ready networking support local failover recording and flexible deployment options.
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Line Wisenet
Product Name 5 MP Vandal-Resistant IR Outdoor Network Dome Camera
Product Type Network Camera
Product Model XNV-8081R
Product Series X
Manufacturer Part Number XNV-8081R
Technical Information
Lens Type Varifocal
Night Vision Yes
Optical Zoom 2.6x
Field of View H : 92.1°(Wide)~38.7°(Tele) / V : 67.2°(Wide)~29.0°(Tele) / D : 119.9°(Wide)~48.6°(Tele)
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.3
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 3.9mm
Connectivity Technology Wired
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 164.04 ft
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66, IP67, IP6K9K
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.9
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature -58°F (-50°C)
Exposure
Longest Shutter Speed 2 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.9-9.4mm
Lens Included Yes
Maximum Focal Length 9.4mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Width 7.1"
Height 4.9"
Weight 3.86lb
Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof
Form Factor Dome
Power Description
Input Voltage 12V DC, 24V AC
Product Information
Diameter 7.1"
Mount Type Box Mount, Ceiling Mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount
Storage
Storage Type Memory Card
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Audio Compression, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, SD Card Local Storage, White Balance, Wide Dynamic Range
Indoor/Outdoor Outdoor
Country of Origin VN
Impact Protection Rating IK10
