Hanwha XNV-8081RE X-Series 5MP IR Outdoor Vandal Dome Camera with PoE Extender, 3.6-9.4mm Varifocal Lens, White

SKU: XNV-8081RE Hanwha Vision

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

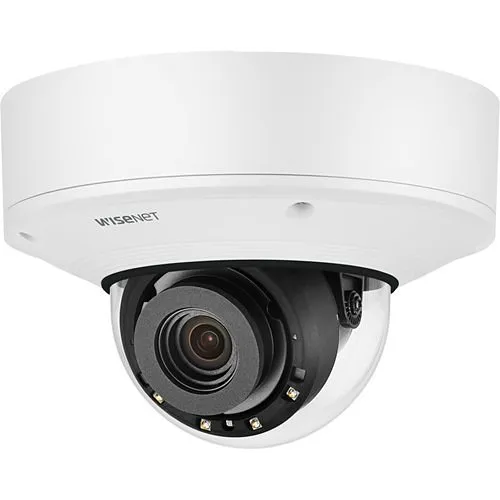

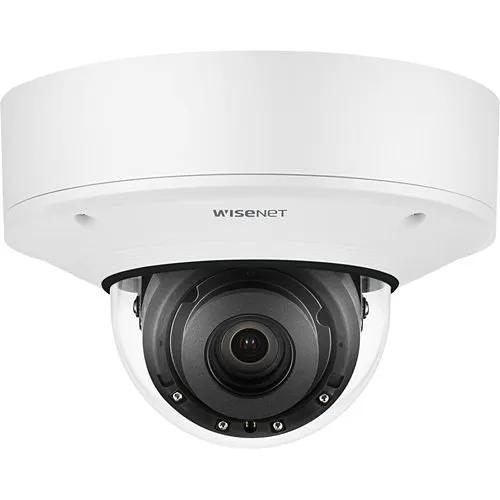

Wisenet XNV-8081RE 6 Megapixel Network Camera - Dome
Product images for Hanwha XNV-8081RE X-Series 5MP IR Outdoor Vandal Dome Camera with PoE Extender, 3.6-9.4mm Varifocal Lens, White. 3 image(s) available. Click on image to view full size.
NDAA Compliant TAA Compliant

Key Features

  • Extends network reach and simplifies installation with built-in PoE extender, reducing cabling and powering additional devices up to 80m.
  • Crystal-clear 5MP imaging and a motorized 3.9–9.4mm varifocal lens for flexible coverage and easy remote framing across parking lots, entrances, and perimeters.
  • Reliable low-light performance with 164 ft IR range, True Day/Night and 120dB WDR to capture critical evidence in challenging lighting.
  • Rugged outdoor protection (IP67/IP66/IP6K9K, IK10+, NEMA 4X) designed to withstand vandalism, dust, water and extreme temperatures for continuous surveillance.
  • Smart analytics and bandwidth efficiency via WiseStream II, H.265 support, and onboard detection (loitering, directional, sound classification) to reduce false alarms and storage costs.

Quick Specifications

Product Model
XNV-8081RE
Brand Name
Hanwha Vision
Product Name
XNV-8081RE 5MP Network IR PoE Extender Vandal Dome Camera
Product Type
Network Camera
View Full Technical Specifications

Frequently Bought Together

Explore the details

Product information

XNV-8081RE

Overview

For demanding outdoor security and perimeter monitoring, the Hanwha Vision XNV-8081RE X-Series 5MP IR vandal dome camera combines high-resolution imaging, hardened construction and installation flexibility. This outdoor dome camera delivers 5MP detail with a motorized 3.9–9.4mm varifocal lens so integrators can remotely adjust field of view for entrances, parking areas or campus corridors without ladders. The built-in PoE extender simplifies deployments by forwarding power and network to downstream devices and extending PoE reach up to 80 meters, cutting conduit and labor costs. Nighttime and high-contrast scenes remain clear thanks to 164 ft IR illumination, True D/N, and 120dB WDR. Designed for continuous operation in harsh environments, the XNV-8081RE meets IP67/IP6K9K, IK10+ and NEMA 4X ratings and operates from -50°C to +60°C. Advanced analytics, WiseStream II bandwidth optimization and dual SD slots reduce storage needs while improving detection accuracy for loitering, directional movement and audio events. Ideal for enterprise, municipal and critical infrastructure surveillance. Contact sales to specify the XNV-8081RE for your next outdoor security or monitoring project.

Features

  • Extends network reach and simplifies installation with built-in PoE extender, reducing cabling and powering additional devices up to 80m.
  • Crystal-clear 5MP imaging and a motorized 3.9–9.4mm varifocal lens for flexible coverage and easy remote framing across parking lots, entrances, and perimeters.
  • Reliable low-light performance with 164 ft IR range, True Day/Night and 120dB WDR to capture critical evidence in challenging lighting.
  • Rugged outdoor protection (IP67/IP66/IP6K9K, IK10+, NEMA 4X) designed to withstand vandalism, dust, water and extreme temperatures for continuous surveillance.
  • Smart analytics and bandwidth efficiency via WiseStream II, H.265 support, and onboard detection (loitering, directional, sound classification) to reduce false alarms and storage costs.
41 of 41 specifications
Technical specifications for Hanwha XNV-8081RE X-Series 5MP IR Outdoor Vandal Dome Camera with PoE Extender, 3.6-9.4mm Varifocal Lens, White
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name XNV-8081RE 5MP Network IR PoE Extender Vandal Dome Camera
Product Type Network Camera
Product Model XNV-8081RE
Product Series X
Manufacturer Part Number XNV-8081RE
Technical Information
Lens Type Varifocal
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.3
Night Vision Type Infrared (IR)
Maximum Frame Rate 30fps
Wide Dynamic Range Yes
Minimum Focal Length 3.90mm
Connectivity Technology Wired
Effective Camera Resolution 6MP
Camera
Image Sensor Type CMOS
Night Vision Distance 164.04'
Certifications
TAA Compliant Yes
NDAA Compliant Yes
Ingress Protection Rating IP66, IP67
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 90%
Maximum Operating Temperature 140°F
Minimum Operating Temperature -58°F
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.9-9.4mm
Maximum Focal Length 9.40mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 3.86lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Product Information
Diameter 7.10"
Mount Type Corner Mount, Pendant Mount, Pole Mount, Wall Mount
Storage
Storage Type SD Card
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format CVBS (Composite Video Baseband Signal)
Miscellaneous
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
