Hanwha XNV-8082R X-Series 6MP IR Outdoor Vandal Dome Camera, 2.8-8.4mm Varifocal Lens, White

SKU: XNV-8082R Hanwha Vision
Hanwha Techwin XNV-8082R 6 Megapixel Network Camera - Dome
Product images for Hanwha XNV-8082R X-Series 6MP IR Outdoor Vandal Dome Camera, 2.8-8.4mm Varifocal Lens, White. 5 image(s) available. Click on image to view full size.
NDAA Compliant TAA Compliant

Key Features

  • Crisp, actionable surveillance: 6MP resolution at 30fps delivers detailed images for fast identification and evidence-grade monitoring.
  • True day/night performance with 131 ft (40 m) IR: reliable low-light capture for 24/7 perimeter and parking lot security.
  • Flexible scene framing: 2.8–8.4mm motorized varifocal lens simplifies commissioning and zoom adjustments without swapping lenses.
  • Rugged, weatherproof design: IP67/IP6K9K and IK10/NEMA 4X rated housing stands up to vandalism, dust and extreme temperatures.
  • Smart edge analytics and dual SD storage: built-in event detection and local recording reduce bandwidth and speed incident response.

Quick Specifications

Product Model
XNV-8082R
Brand Name
Hanwha Vision
Product Line
WiseNet
Product Name
6MP Network IR Vandal Dome Camera
View Full Technical Specifications

Frequently Bought Together

Explore the details

Product information

XNV-8082R

Overview

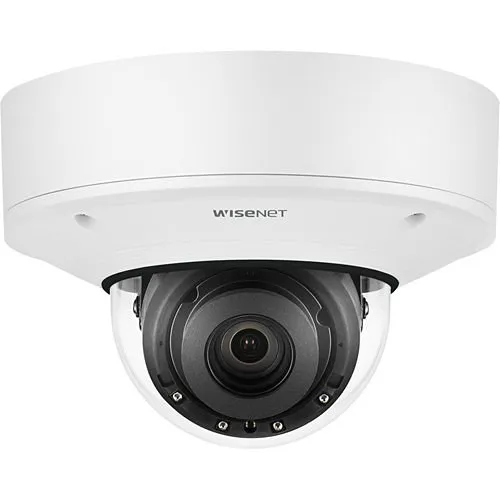

Built for demanding outdoor surveillance, the Hanwha Vision XNV-8082R X-Series 6MP IR vandal dome camera gives businesses clear, reliable monitoring day and night. This network dome camera captures 6MP detail at 30fps and pairs a 2.8–8.4mm motorized varifocal lens with 131 ft (40 m) of IR illumination to ensure license-plate and face-level clarity across parking lots, entrances and perimeters.

Designed for installers and security managers, the XNV-8082R offers PoE support, dual SD card slots for robust edge storage, and WiseNet analytics to reduce false alarms with features like shock, defocus and directional detection. The IP67/IP6K9K and IK10-rated enclosure resists water, dust and impact—making it ideal for transit hubs, industrial sites and retail exteriors. H.265/H.264 compression with WiseStreamII optimizes bandwidth and storage while preserving image quality.

Choose the Hanwha Vision XNV-8082R when you need dependable, high-resolution surveillance that simplifies deployment and improves incident detection. Perfect for perimeter, parking, and critical infrastructure monitoring—add it to your security system today.

Features

  • Crisp, actionable surveillance: 6MP resolution at 30fps delivers detailed images for fast identification and evidence-grade monitoring.
  • True day/night performance with 131 ft (40 m) IR: reliable low-light capture for 24/7 perimeter and parking lot security.
  • Flexible scene framing: 2.8–8.4mm motorized varifocal lens simplifies commissioning and zoom adjustments without swapping lenses.
  • Rugged, weatherproof design: IP67/IP6K9K and IK10/NEMA 4X rated housing stands up to vandalism, dust and extreme temperatures.
  • Smart edge analytics and dual SD storage: built-in event detection and local recording reduce bandwidth and speed incident response.
54 of 54 specifications
Technical specifications for Hanwha XNV-8082R X-Series 6MP IR Outdoor Vandal Dome Camera, 2.8-8.4mm Varifocal Lens, White
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Line WiseNet
Product Name 6MP Network IR Vandal Dome Camera
Product Type Network Camera
Product Model XNV-8082R
Product Series X
Country of Origin VN
Cloud Capabilities Cloud Enabled, Cloud Managed
Manufacturer Part Number XNV-8082R
Technical Information
Night Vision Yes
Optical Zoom 3.0x
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Maximum Aperture f/2.8
Night Vision Type Infrared (IR)
Maximum Frame Rate 30fps
Wide Dynamic Range Yes
Minimum Focal Length 2.80mm
Connectivity Technology Wired
Field of View (Vertical) 62.00°
Field of View (Horizontal) 114.0°
Effective Camera Resolution 6MP
Camera
Image Sensor Type CMOS
Night Vision Distance 131.23'
Certifications
TAA Compliant Yes
NDAA Compliant Yes
Ingress Protection Rating IP66, IP67, IP6K9K
Environmental Conditions
Operating Humidity 95%
Maximum Operating Temperature 140°F
Minimum Operating Temperature -58°F
Exposure
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8-8.4mm
Lens Included Yes
Minimum Aperture f/1.2
Maximum Focal Length 8.40mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Depth 7.10"
Width 7.10"
Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof
Form Factor Dome
Power Description
Input Voltage 12V DC
Product Information
Diameter 7.10"
Mount Type Ceiling Mount, Corner Mount, Pole Mount, Wall Mount
Storage
Storage Type SD Card
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format CVBS
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Audio Compression, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Indoor/Outdoor Indoor, Outdoor
Impact Protection Rating IK10
