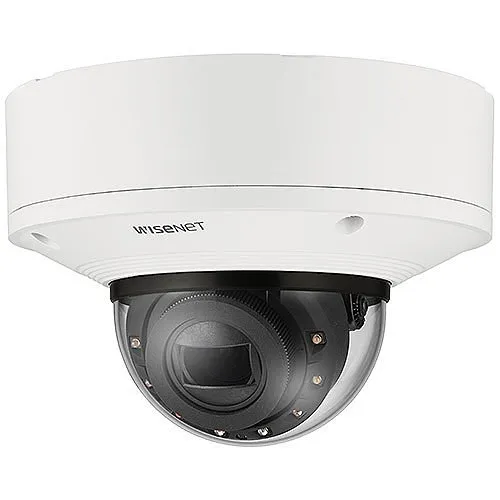

Hanwha XNV-9083R Series 8MP Outdoor IR Vandal Dome IP Camera, 4.4-9.3mm Motorized Varifocal Lens, White

SKU: XNV-9083R Hanwha Vision
Image of SQ-XNV9083R
Product images for Hanwha XNV-9083R Series 8MP Outdoor IR Vandal Dome IP Camera, 4.4-9.3mm Motorized Varifocal Lens, White. 2 image(s) available. Click on image to view full size.
NDAA Compliant TAA Compliant

Key Features

  • Reliable 24/7 monitoring with 8MP 4K clarity for faster identification and incident review
  • Long-range IR night vision (up to 164 ft) to keep perimeter and entry points protected in total darkness
  • Vandal- and weather-resistant housing (IK10, IP66/IP67) for dependable outdoor performance in harsh environments
  • Motorized 4.4–9.3mm varifocal lens for fast, on-site or remote framing and zoom without swapping optics
  • Simplified integration and storage with H.265 compression, SD card support and remote management for efficient surveillance operations

Quick Specifications

Product Model
XNV-9083R
Brand Name
Hanwha Vision
Product Name
4K IR Outdoor Vandal Dome AI Camera
Product Type
Dome Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Secure high-value perimeters and critical entry points with the Hanwha Vision XNV-9083R 8MP outdoor vandal dome camera. Built for professional security and surveillance, this IP dome delivers 4K resolution for clear facial and license plate capture, while IR night vision extends visibility up to 164 ft for reliable night monitoring. The robust IK10 impact rating and IP66/IP67 weatherproofing mean fewer service calls and continuous operation in rain, dust, or extreme temperatures.

Operational efficiency is improved by the motorized 4.4–9.3mm varifocal lens and P‑Iris control, enabling precise remote framing and consistent image quality. Advanced video codecs (H.265) and local SD storage reduce bandwidth and storage costs, and built-in analytics—motion, tamper and shock detection—help focus attention on real threats, not false alarms. Designed for easy integration into existing NVR and VMS platforms, the XNV-9083R supports secure remote management for distributed deployments.

Upgrade your security infrastructure with a durable, high-resolution dome camera ideal for retail, campus, transportation, and perimeter monitoring — contact sales or add the XNV-9083R to your deployment plan today.

Features

  • Reliable 24/7 monitoring with 8MP 4K clarity for faster identification and incident review
  • Long-range IR night vision (up to 164 ft) to keep perimeter and entry points protected in total darkness
  • Vandal- and weather-resistant housing (IK10, IP66/IP67) for dependable outdoor performance in harsh environments
  • Motorized 4.4–9.3mm varifocal lens for fast, on-site or remote framing and zoom without swapping optics
  • Simplified integration and storage with H.265 compression, SD card support and remote management for efficient surveillance operations
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 4K IR Outdoor Vandal Dome AI Camera
Product Type Dome Camera
Product Model XNV-9083R
Product Series X
Manufacturer Part Number XNV-9083R
Technical Information
Iris Type P-iris
Night Vision Yes
Optical Zoom 2.1x
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.3
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 4.4mm
Connectivity Technology Wired
Field of View (Vertical) 58°
Field of View (Horizontal) 112.1°
Effective Camera Resolution 8MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 164.04 ft
Certifications
TAA Compliant Yes
NDAA Compliant Yes
Ingress Protection Rating IP66, IP67, IP6K9K
Display & Graphics
Maximum Video Resolution 3840 x 2160
Environmental Conditions
Operating Humidity 95% RH (Non-condensing)
Maximum Operating Temperature 131°F
Minimum Operating Temperature -58°F
Exposure
Minimum Illumination 0.004 lux
Longest Shutter Speed 1/12000 Second
Shortest Shutter Speed 2 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 4.4-9.3mm
Lens Included Yes
Minimum Aperture f/2.15
Maximum Focal Length 9.3mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 4.19 lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Power Description
Input Voltage 12V DC
Product Information
Diameter 7.1"
Mount Type Pendant Mount
Storage
Storage Type Memory Card
Recording Formats 4K
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format CVBS
Miscellaneous
Features Audio Detection, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Masking, SD Card Local Storage, Shock Detection, Tamper Detection, Wide Dynamic Range
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
