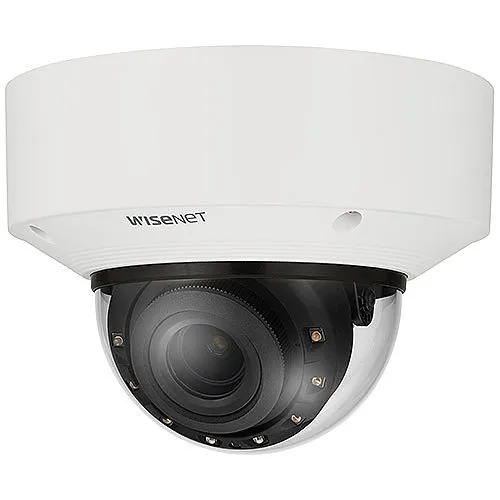

Hanwha XNV-C6083R Series 2MP Outdoor IR Vandal Dome IP Camera, 2.8-12mm Motorized Varifocal Lens, White

SKU: XNV-C6083R Hanwha Vision
Image of SQ-XNVC6083R
Product images for Hanwha XNV-C6083R Series 2MP Outdoor IR Vandal Dome IP Camera, 2.8-12mm Motorized Varifocal Lens, White. 2 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Clear, actionable surveillance day or night: 2MP resolution with IR up to 131 ft delivers identifiable images to support incident review and evidence capture.
  • Flexible coverage with motorized varifocal lens: 2.8–12mm motorized zoom lets you frame scenes remotely to reduce blind spots and lower installation time.
  • Fewer false alarms with built-in AI analytics: smart detection improves monitoring efficiency and focuses operator attention on real threats.
  • Weather- and impact-resistant for outdoor use: IP66/IP67 and IK10 ratings ensure continuous operation in harsh conditions and high-traffic locations.
  • Easy integration and secure compliance: NDAA-compliant design, H.265 support, SD local storage and remote management simplify deployment across networks.

Quick Specifications

Product Model
XNV-C6083R
Brand Name
Hanwha Vision
Product Name
2MP IR Outdoor Vandal Dome AI Camera
Product Type
Dome Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Protect perimeters and critical assets with the Hanwha Vision XNV-C6083R 2MP outdoor IR vandal dome camera — engineered for reliable 24/7 surveillance in demanding environments. This Hanwha Vision dome camera combines clear 1920x1080 imagery and infrared night vision up to 131.23 feet with a 2.8–12mm motorized varifocal lens, giving security teams the flexibility to zoom and focus remotely for tight coverage or wide-area monitoring. Built-in AI analytics reduces false alarms by prioritizing human and vehicle events, so operators and VMS integrations receive higher-value alerts. Ruggedized for outdoor deployments, the XNV-C6083R carries IP66/IP67 weatherproofing and IK10 impact resistance to withstand vandalism and extreme conditions. NDAA compliance, H.265 video compression and SD local storage provide secure, cost-effective recording and easy integration with existing NVRs and network infrastructures. Ideal for commercial sites, campuses, parking areas and critical facilities, this camera delivers dependable, low-maintenance surveillance. Contact us to configure this Hanwha Vision dome camera for your site or add it to your next security upgrade.

Features

  • Clear, actionable surveillance day or night: 2MP resolution with IR up to 131 ft delivers identifiable images to support incident review and evidence capture.
  • Flexible coverage with motorized varifocal lens: 2.8–12mm motorized zoom lets you frame scenes remotely to reduce blind spots and lower installation time.
  • Fewer false alarms with built-in AI analytics: smart detection improves monitoring efficiency and focuses operator attention on real threats.
  • Weather- and impact-resistant for outdoor use: IP66/IP67 and IK10 ratings ensure continuous operation in harsh conditions and high-traffic locations.
  • Easy integration and secure compliance: NDAA-compliant design, H.265 support, SD local storage and remote management simplify deployment across networks.
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 2MP IR Outdoor Vandal Dome AI Camera
Product Type Dome Camera
Product Model XNV-C6083R
Product Series X
Manufacturer Part Number XNV-C6083R
Technical Information
Iris Type DC Auto Iris
Night Vision Yes
Optical Zoom 4.3x
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.4
Night Vision Type Infrared
Maximum Frame Rate 60fps
Minimum Focal Length 2.8mm
Connectivity Technology Wired
Field of View (Vertical) 63°
Field of View (Horizontal) 120°
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 131.23 ft
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66, IP67
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 100% RH (Condensing)
Maximum Operating Temperature 131°F
Minimum Operating Temperature -40°F
Exposure
Minimum Illumination 0.002 lux
Longest Shutter Speed 1/12000 Second
Shortest Shutter Speed 2 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8-12mm
Lens Included Yes
Minimum Aperture f/3.6
Maximum Focal Length 12mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 3.20 lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Power Description
Input Voltage 12V DC
Product Information
Diameter 6.3"
Mount Type Pendant Mount
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Miscellaneous
Features Audio Detection, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Masking, SD Card Local Storage, Shock Detection, Tamper Detection, Wide Dynamic Range
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
