Hanwha XNZ-6320A X Series 2MP Box Camera, 4.44-142.6mm Varifocal Lens, 32x Optical Zoom, 32x Digital Zoom (Replaces HCZ-6321)

SKU: XNZ-6320A Hanwha Vision

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

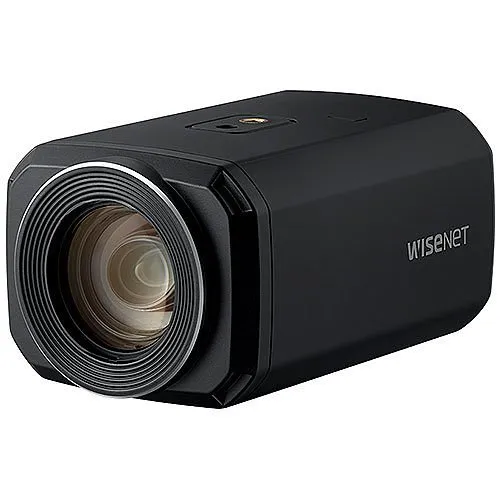

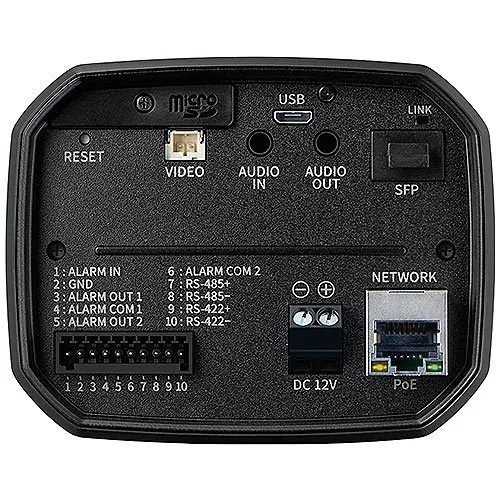

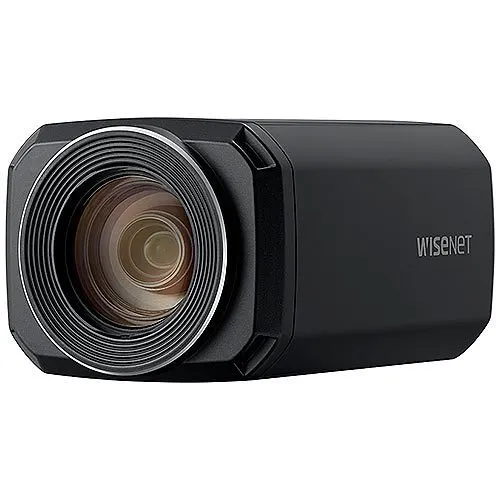

Image of SQ-XNZ6320A
Product images for Hanwha XNZ-6320A X Series 2MP Box Camera, 4.44-142.6mm Varifocal Lens, 32x Optical Zoom, 32x Digital Zoom (Replaces HCZ-6321). 4 image(s) available. Click on image to view full size.

Key Features

  • Long-range identification and tracking with 32x optical zoom (4.44–142.6mm) for clear subject recognition at distance
  • Reliable 24/7 surveillance with Day/Night ICR, 120dB WDR and 0.005 lux sensitivity for low-light and high-contrast scenes
  • Efficient network recording using H.265/H.264 codecs and up to 60 fps to reduce bandwidth and storage costs
  • Flexible deployment: PoE and 12V DC power options plus local storage with dual microSD slots (up to 512GB)
  • Built-in analytics and remote management for proactive monitoring, incident detection and simplified system integration

Quick Specifications

Product Model
XNZ-6320A
Brand Name
Hanwha Vision
Product Name
2MP 32x Zoom Box
Product Type
Zoom Camera
View Full Technical Specifications

Frequently Bought Together

This Item
Hanwha XNZ-6320A X Series 2MP Box Camera, 4.44-142.6mm Varifocal Lens, 32x Optical Zoom, 32x Digital Zoom (Replaces HCZ-6321)

Hanwha XNZ-6320A X Series 2MP Box Camera, 4.44-142.6mm Varifocal Lens, 32x Optical Zoom, 32x Digital Zoom (Replaces HCZ-6321)

$918.00

Frequently Bought Together (3 items)

4 items selected

Total: $1,314.23

Product Information Tabs

Overview

Designed for long-range, mission-critical surveillance, the Hanwha Vision XNZ-6320A X Series 2MP Box Camera delivers dependable image clarity and zoom reach for perimeter, transportation and facility monitoring. This box camera combines a true 2MP (1920 x 1080) sensor with a 32x optical varifocal lens (4.44–142.6mm) to capture detailed identification shots at distance while maintaining smooth 60 fps performance for fast-moving scenes. Integrated H.265/H.264 compression and multiple streams optimize bandwidth and storage, and dual microSD slots (up to 512GB) provide secure local recording. Advanced imaging features — including Day/Night ICR, 120dB WDR, Defog and 0.005 lux sensitivity — ensure usable footage in challenging lighting and weather conditions. PoE and 12V DC support flexible installations, and built-in video analytics and remote management reduce false alarms and speed response. Ideal for enterprise security, perimeter protection and traffic monitoring, the XNZ-6320A simplifies deployment while enhancing situational awareness. Contact your sales rep to configure this Hanwha Vision box camera for your security system or add it to your next surveillance project.

Features

  • Long-range identification and tracking with 32x optical zoom (4.44–142.6mm) for clear subject recognition at distance
  • Reliable 24/7 surveillance with Day/Night ICR, 120dB WDR and 0.005 lux sensitivity for low-light and high-contrast scenes
  • Efficient network recording using H.265/H.264 codecs and up to 60 fps to reduce bandwidth and storage costs
  • Flexible deployment: PoE and 12V DC power options plus local storage with dual microSD slots (up to 512GB)
  • Built-in analytics and remote management for proactive monitoring, incident detection and simplified system integration
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 2MP 32x Zoom Box
Product Type Zoom Camera
Product Model XNZ-6320A
Product Series X
Manufacturer Part Number XNZ-6320A
Technical Information
Optical Zoom 32x
Field of View Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Maximum Frame Rate 60fps
Minimum Focal Length 4.44mm
Connectivity Technology Wired
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 95% RH
Maximum Operating Temperature 140°F
Minimum Operating Temperature 14°F
Exposure
Minimum Illumination 0.005 lux
Longest Shutter Speed 1/12000 Second
Shortest Shutter Speed 2 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Lens Included Yes
Minimum Aperture f/4.4
Maximum Focal Length 142.6mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces XNZ-6320
Physical Characteristics
Color Gray
Weight 1.27lb
Power Description
Input Voltage 12V DC
Product Information
Mount Type Box Mount, Bracket Mount
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format CVBS
Miscellaneous
Features Built-in Mechanical ICR, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Privacy Masking, SD Card Local Storage, White Balance, Wide Dynamic Range
Country of Origin VN
