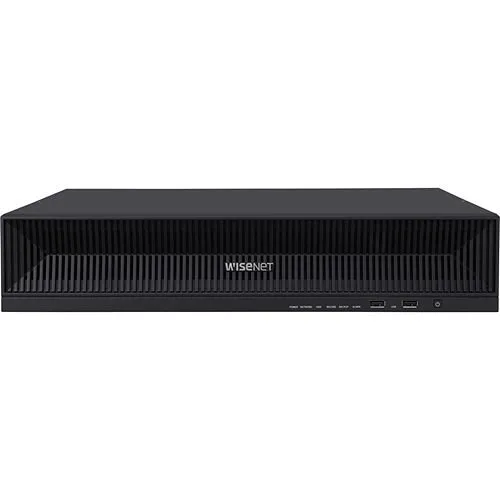

Hanwha XRN-1620SB1 X-Series 4K 16-Channel H.265 PoE+ NVR with AI Search, 140Mbps, 8TB HDD, Black
Image of 3
Key Features
- Accelerate investigations with built-in AI Search for rapid event detection and forensic review.
- Simplify installation with 16 PoE/PoE+ ports and plug-and-play connectivity to reduce deployment time.
- Maximize retention and reduce storage costs with H.265 and WiseStream compression plus 8TB onboard storage.
- Support multi-site monitoring with 140 Mbps recording throughput and dual HDMI/VGA outputs for operator stations.
- Improve reliability with Automatic Recovery Backup (ARB) and a hardened, Intel-based X-Series chassis for 24/7 operation.
Quick Specifications
- Product Model
- XRN-1620SB1
- Bandwidth
- 140 Mbps
- Brand Name
- Hanwha Vision
- Product Name
- XRN-1620SB1 Video Surveillance Station
Frequently Bought Together
Hanwha XRN-1620SB1 X-Series 4K 16-Channel H.265 PoE+ NVR with AI Search, 140Mbps, 8TB HDD, Black
$1,771.12
8 items selected
Total: $3,352.91
Product Information Tabs
Overview
Designed for demanding commercial and enterprise security deployments, the Hanwha Vision XRN-1620SB1 Network Video Recorder delivers fast, reliable surveillance and faster incident response. This 16-channel PoE+ NVR combines AI Search (when paired with Wisenet AI cameras) and advanced H.265 compression to speed investigations while lowering bandwidth and storage requirements. With up to 140 Mbps recording throughput and a built-in 8TB HDD, the unit supports high-resolution 4K/32MP camera streams and long retention windows for compliance and evidence needs. Plug-and-play PoE ports simplify camera power and network wiring, while dual HDMI/VGA outputs and fisheye dewarping improve live monitoring and video review. Enterprise features like Automatic Recovery Backup (ARB), WiseStream adaptive encoding, and a plugin-free Web UI make the XRN-1620SB1 easy to manage across distributed sites. NDAA-compliant and purpose-built for 24/7 operation, it’s ideal for retail, transportation hubs, education campuses, and corporate campuses. Contact our sales team to configure the XRN-1620SB1 for your security and monitoring requirements.
Features
- Accelerate investigations with built-in AI Search for rapid event detection and forensic review.

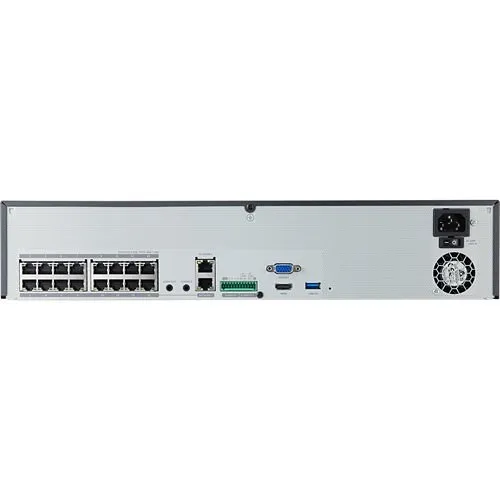

- Simplify installation with 16 PoE/PoE+ ports and plug-and-play connectivity to reduce deployment time.
- Maximize retention and reduce storage costs with H.265 and WiseStream compression plus 8TB onboard storage.
- Support multi-site monitoring with 140 Mbps recording throughput and dual HDMI/VGA outputs for operator stations.
- Improve reliability with Automatic Recovery Backup (ARB) and a hardened, Intel-based X-Series chassis for 24/7 operation.
| General Information | |
|---|---|
| Bandwidth | 140 Mbps |
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Product Name | XRN-1620SB1 Video Surveillance Station |
| Product Type | Video Surveillance Station |
| Product Model | XRN-1620SB1 |
| Product Series | X |
| Manufacturer Part Number | XRN-1620SB1-8TB |
| Technical Information | |
| Video Formats | H.264, H.265, MJPEG |
| Storage Capacity | 8TB |
| Power Consumption | 310W |
| Maximum Frame Rate | 200fps |
| Number of Channels | 16 |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 32MP |
| Certifications | |
| TAA Compliant | No |
| NDAA Compliant | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Number of USB Ports | 1 |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | XRN-1610SA-8TB |
| Physical Characteristics | |
| Color | Black |
| Depth | 16.9" |
| Width | 17.3" |
| Height | 3.5" |
| Weight | 12.70 lb |
| Storage | |
| Recording Formats | 8K |
| Hard Drive Capacity | 8TB |
| Video | |
| Maximum Resolution | 1280 x 720 |
