LILIN Z5R6422X3 1080P Fixed IR Vandal Resistant Dome IP Camera, 2.8-12mm Lens, White, White

SKU: Z5R6422X3 Merit LILIN

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

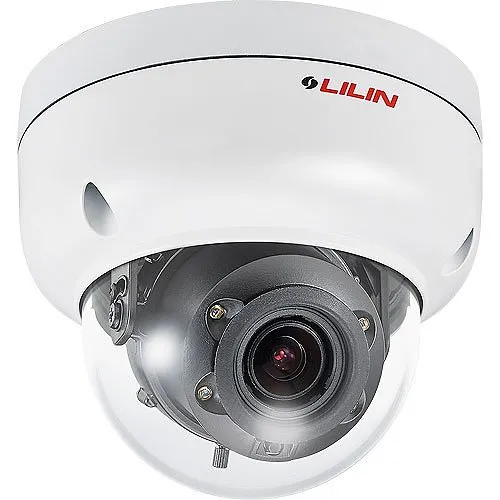

LILIN Z5R6422X3 1080P Fixed IR Vandal Resistant Dome IP Camera
Product images for LILIN Z5R6422X3 1080P Fixed IR Vandal Resistant Dome IP Camera, 2.8-12mm Lens, White, White. 2 image(s) available. Click on image to view full size.
NDAA Compliant TAA Compliant

Key Features

  • Capture clear, actionable footage with 1080P Full HD imaging for reliable identification and evidence capture.
  • Cover varying scenes with a 2.8–12mm varifocal lens, allowing quick field-of-view adjustment to monitor entrances, parking lots, or retail aisles.
  • Maintain 24/7 surveillance with IR night vision up to ~98 ft and H.265 compression for efficient, long-term recording.
  • Rely on rugged protection (IK10 vandal resistance and IP67 weatherproofing) to withstand impact, dust, and harsh outdoor conditions.
  • Simplify deployment and management with RJ-45 network connectivity, remote management, and local SD card storage options.

Quick Specifications

Product Model
Z5R6422X3
Brand Name
Merit LILIN
Product Line
H.265
Product Name
1080P Day & Night Auto Focus IR Vandal Resistant Dome IP Camera
View Full Technical Specifications

Product Information Tabs

Overview

Protect high-traffic areas and critical assets with the Merit LILIN Z5R6422X3 1080P Fixed IR Vandal Resistant Dome IP Camera — designed for dependable outdoor security and continuous monitoring. This Merit LILIN dome camera delivers Full HD 1920 x 1080 resolution so you capture faces, license plates, and fine detail when it matters most. The 2.8–12mm varifocal lens gives you flexible coverage from wide-angle to close-in views, letting integrators tailor surveillance to entrances, perimeters, or retail floors. Built for tough environments, the IK10 impact rating and IP67 weatherproof housing keep the unit operational in vandal-prone or wet conditions. Advanced IR illumination provides night vision up to approximately 98 ft, while H.265 video compression reduces bandwidth and storage costs for scalable deployments. With network (RJ-45) connectivity, remote management, and SD card support, the Z5R6422X3 integrates easily into existing security systems for streamlined monitoring and recording. Ideal for commercial, municipal, and residential security projects — add this resilient dome camera to your surveillance strategy today.

Features

  • Capture clear, actionable footage with 1080P Full HD imaging for reliable identification and evidence capture.
  • Cover varying scenes with a 2.8–12mm varifocal lens, allowing quick field-of-view adjustment to monitor entrances, parking lots, or retail aisles.
  • Maintain 24/7 surveillance with IR night vision up to ~98 ft and H.265 compression for efficient, long-term recording.
  • Rely on rugged protection (IK10 vandal resistance and IP67 weatherproofing) to withstand impact, dust, and harsh outdoor conditions.
  • Simplify deployment and management with RJ-45 network connectivity, remote management, and local SD card storage options.
General Information
Brand Name Merit LILIN
Manufacturer Merit LILIN Ent. Co., Ltd
Product Line H.265
Product Name 1080P Day & Night Auto Focus IR Vandal Resistant Dome IP Camera
Product Type Network Camera
Product Model Z5R6422X3
Product Series Z5
Manufacturer Part Number Z5R6422X3
Technical Information
Lens Type Varifocal
Night Vision Yes
Optical Zoom 4.3x
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.8
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 2.8mm
Connectivity Technology Wired
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 98.43 ft
Certifications
TAA Compliant Yes
NDAA Compliant Yes
Ingress Protection Rating IP67
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 0.9
Maximum Operating Temperature 122°F (50°C)
Minimum Operating Temperature -22°F (-30°C)
Exposure
Longest Shutter Speed 1/30 Second
Shortest Shutter Speed 1/20000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8mm
Lens Included Yes
Minimum Aperture f/3.3
Maximum Focal Length 12mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 1.68lb
Durability Dust Resistant, Impact Resistant, Rain Resistant, Vandal Resistant, Waterproof
Form Factor Dome
Power Description
Input Voltage 12V DC
Product Information
Diameter 4.7"
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Miscellaneous
Features 3D Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Wide Dynamic Range (D-WDR), Password Protection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Indoor/Outdoor Outdoor
Country of Origin TW
Impact Protection Rating IK10
