Hikvision DS-2DY3220IW-DE Value Series 2MP Compact Outdoor IR PTZ IP Camera with Wall mount, 4.7-94mm Lens, White

SKU: DS-2DY3220IW-DE Hikvision
Hikvision DS-2DY3220IW-DE 2 Megapixel Network Camera - Monochrome, Color

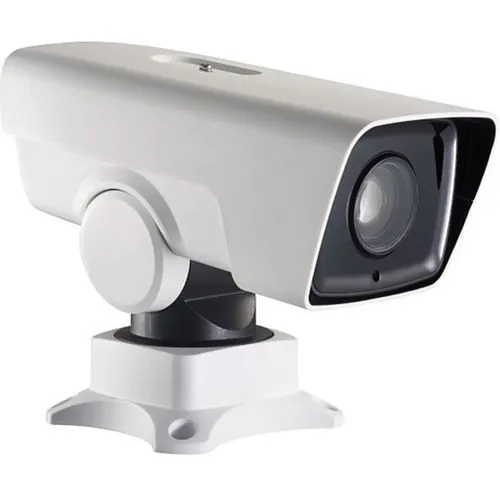

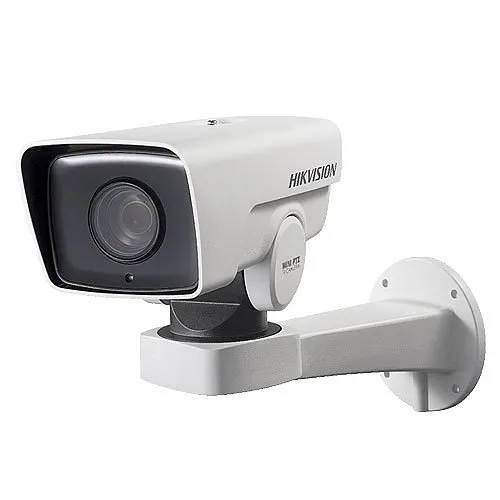

Product images for Hikvision DS-2DY3220IW-DE Value Series 2MP Compact Outdoor IR PTZ IP Camera with Wall mount, 4.7-94mm Lens, White. 2 image(s) available. Click on image to view full size.

Key Features

  • Long-range night monitoring with up to 100 m (330 ft) IR for zero-lux evidence capture
  • 20x optical zoom with 4.7–94mm varifocal lens for precise identification across wide areas
  • 2MP Full HD sensor and H.265 compression for clear images with efficient storage and bandwidth
  • IP66 weatherproof housing and included wall mount for durable, low-maintenance outdoor deployment
  • PoE (802.3at) support, remote PTZ control and onboard SD storage for simplified installation and continuous recording

Quick Specifications

Product Model
DS-2DY3220IW-DE
Brand Name
Hikvision
Product Name
DS-2DY3220IW-DE Network Camera
Product Type
Network Camera
View Full Technical Specifications

Product Information Tabs

Overview

Built for reliable outdoor perimeter surveillance, the Hikvision DS-2DY3220IW-DE compact PTZ IP camera gives security teams long-range monitoring and precise identification from a single unit. This Hikvision PTZ camera combines a 2MP progressive-scan sensor with a 4.7–94mm varifocal lens and 20x optical zoom to capture readable detail across large areas, reducing the number of fixed cameras required. Powerful infrared illumination delivers up to 100 m (330 ft) of night coverage for zero-lux visibility and evidentiary-quality footage.

Engineered for real-world deployments, the camera supports H.265 compression and PoE (802.3at) for efficient bandwidth use and simplified installation. The IP66-rated, weatherproof housing and included wall mount protect the unit in harsh conditions while enabling flexible placement. Onboard SD storage, 3D DNR and digital WDR improve image clarity under challenging lighting, and remote PTZ control enables live tracking and targeted monitoring from your network operations center.

Ideal for parking lots, campuses, retail perimeters and industrial sites, the DS-2DY3220IW-DE delivers dependable surveillance and faster incident response. Add this Hikvision PTZ camera to your security system to consolidate coverage and boost situational awareness.

Features

  • Long-range night monitoring with up to 100 m (330 ft) IR for zero-lux evidence capture
  • 20x optical zoom with 4.7–94mm varifocal lens for precise identification across wide areas
  • 2MP Full HD sensor and H.265 compression for clear images with efficient storage and bandwidth
  • IP66 weatherproof housing and included wall mount for durable, low-maintenance outdoor deployment
  • PoE (802.3at) support, remote PTZ control and onboard SD storage for simplified installation and continuous recording
General Information
Brand Name Hikvision
Manufacturer Hikvision
Product Name DS-2DY3220IW-DE Network Camera
Product Type Network Camera
Product Model DS-2DY3220IW-DE
Product Series Special
Manufacturer Part Number DS-2DY3220IW-DE
Technical Information
Lens Type Varifocal
Night Vision Yes
Optical Zoom 20x
Field of View 61.4° to 2.9° (wide?tele)
Video Formats H.264, MJPEG
Maximum Aperture f/3.5
Night Vision Type Infrared
Maximum Frame Rate 60fps
Minimum Focal Length 4.7mm
Connectivity Technology Wired
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 492.13 ft
Certifications
TAA Compliant No
NDAA Compliant No
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 149°F (65°C)
Minimum Operating Temperature -22°F (-30°C)
Exposure
Longest Shutter Speed 1/1 Second
Shortest Shutter Speed 1/30000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 4.7-94mm
Lens Included Yes
Minimum Aperture f/1.6
Maximum Focal Length 94mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Depth 14.4"
Width 9.5"
Height 4.8"
Weight 6.61 lb
Durability Dustproof, Waterproof, Weather Resistant
Form Factor Bullet
Power Description
Input Voltage 12V DC
Product Information
Mount Type Wall Mount
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Miscellaneous
Features 3D Digital Noise Reduction, Day/Night, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Motion Detection, Privacy Masking, SD Card Local Storage
Indoor/Outdoor Outdoor
