Hikvision DS-2DY3220IW-DE4 Value Series 2MP Compact Outdoor IR PTZ IP Camera with Pedestal Mount, 4.7-94mm Lens, White

SKU: DS-2DY3220IW-DE4 Hikvision

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Hikvision DS-2DY3220IW-DE4 2 Megapixel Network Camera - Monochrome, Color

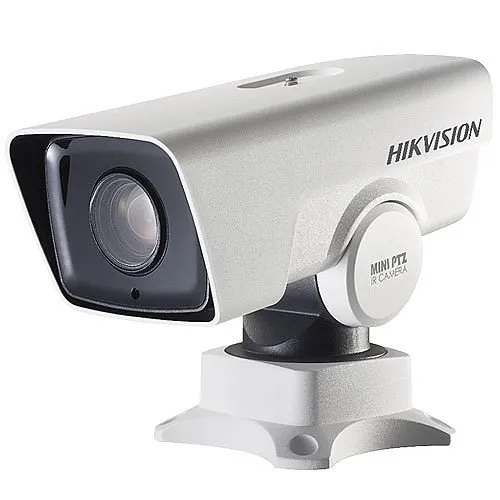

Product images for Hikvision DS-2DY3220IW-DE4 Value Series 2MP Compact Outdoor IR PTZ IP Camera with Pedestal Mount, 4.7-94mm Lens, White. 2 image(s) available. Click on image to view full size.

Key Features

  • Deliver reliable perimeter security with 2MP Full HD imaging and 20x optical zoom to identify people and vehicles at a distance
  • Maintain 24/7 monitoring with powerful IR night vision (up to 100 m / 330 ft) and true day/night performance
  • Simplify installation and networking with PoE (802.3at) feed-through cabling and pedestal mount for clean outdoor deployments
  • With IP66 weatherproofing and wide operating temperature range, built for continuous outdoor surveillance in harsh environments
  • Smart image enhancements (WDR, 3D DNR, BLC) reduce false alarms and improve clarity in challenging lighting for better evidence capture

Quick Specifications

Product Model
DS-2DY3220IW-DE4
Brand Name
Hikvision
Product Name
DS-2DY3220IW-DE4 Network Camera
Product Type
Network Camera
View Full Technical Specifications

Product Information Tabs

Overview

Designed for demanding outdoor surveillance, the Hikvision DS-2DY3220IW-DE4 Value Series PTZ network camera delivers dependable, long-range monitoring for parking lots, campuses, and perimeter protection. This Hikvision PTZ security camera combines 2MP Full HD resolution (1920 x 1080) with a 20x optical zoom and a 4.7–94 mm varifocal lens so operators can quickly pan, tilt and zoom to identify persons and incidents across large areas. Low-light and zero-lux IR performance — up to approximately 100 m (330 ft) — ensures continuous night-time coverage, while WDR, 3D DNR and BLC optimize image clarity in difficult lighting. Built for installers and integrators, the DS-2DY3220IW-DE4 supports PoE (802.3at) and feedthrough cabling for streamlined network power and a tidy pedestal mount for secure outdoor placement. With IP66-rated weatherproofing and robust operating temps, it’s a practical choice for 24/7 security, monitoring and remote surveillance applications. Add this Hikvision PTZ camera to your next security deployment to improve situational awareness and evidence capture.

Features

  • Deliver reliable perimeter security with 2MP Full HD imaging and 20x optical zoom to identify people and vehicles at a distance
  • Maintain 24/7 monitoring with powerful IR night vision (up to 100 m / 330 ft) and true day/night performance
  • Simplify installation and networking with PoE (802.3at) feed-through cabling and pedestal mount for clean outdoor deployments
  • With IP66 weatherproofing and wide operating temperature range, built for continuous outdoor surveillance in harsh environments
  • Smart image enhancements (WDR, 3D DNR, BLC) reduce false alarms and improve clarity in challenging lighting for better evidence capture
General Information
Brand Name Hikvision
Manufacturer Hikvision
Product Name DS-2DY3220IW-DE4 Network Camera
Product Type Network Camera
Product Model DS-2DY3220IW-DE4
Product Series Special
Manufacturer Part Number DS-2DY3220IW-DE4
Technical Information
Lens Type Varifocal
Night Vision Yes
Optical Zoom 20x
Field of View 61.4° to 2.9° (wide?tele)
Video Formats H.264, MJPEG
Maximum Aperture f/3.5
Night Vision Type Infrared
Maximum Frame Rate 60fps
Video Signal Format NTSC, PAL
Minimum Focal Length 4.7mm
Connectivity Technology Wired
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 492.13 ft
Certifications
TAA Compliant No
NDAA Compliant No
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 149°F (65°C)
Minimum Operating Temperature -22°F (-30°C)
Exposure
Longest Shutter Speed 1/1 Second
Shortest Shutter Speed 1/30000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 4.7-94mm
Lens Included Yes
Minimum Aperture f/1.6
Maximum Focal Length 94mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Depth 10"
Width 7.6"
Height 4.8"
Weight 6.61 lb
Durability Dustproof, Waterproof, Weatherproof
Form Factor Bullet
Package Type Retail
Power Description
Input Voltage 12V DC
Product Information
Mount Type Pedestal Mount
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Miscellaneous
Features 3D Digital Noise Reduction, Auto Gain Control, Back Light Compensation (BLC), Day/Night, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Indoor/Outdoor Outdoor
