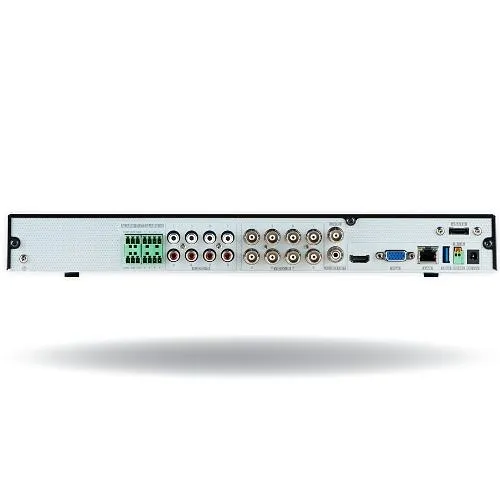

Digital Watchdog DW-VA1G4164T VMAX A1 G4 UHDoC 4K 16-Channel DVR, 4TB HDD

SKU: DW-VA1G4164T Digital Watchdog
Image of 6K-VA1G4164T
Product images for Digital Watchdog DW-VA1G4164T VMAX A1 G4 UHDoC 4K 16-Channel DVR, 4TB HDD. 5 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Upgrade legacy coax to true 4K surveillance: capture clearer evidence and extend ROI on existing cabling with HD-over-Coax compatibility
  • Centralized, secure monitoring: 16-channel recording and PathFinder remote access simplify enterprise surveillance and off-site management
  • Save time on camera adjustments: Up the Coax (UTC) lets you configure and tune cameras from the DVR—no ladder or site visits required
  • Scalable, dependable storage: Includes a 4TB HDD with two drive bays for expanded retention and industry-grade H.264 recording
  • Compliance-ready for procurement: NDAA/TAA certified hardware and a 5-year limited warranty reduce procurement hurdles for government and enterprise projects

Quick Specifications

Product Model
DW-VA1G4164T
Brand Name
Digital Watchdog
Product Line
VMAX A1 G4
Product Name
DW-VA1G416xT VMAX A1 G4 Universal HD over Coax 16-channel DVR
View Full Technical Specifications

Frequently Bought Together

Explore the details

Product information

DW-VA1G4164T

Overview

Deliver reliable, high-resolution security where it matters most — the Digital Watchdog DW-VA1G4164T VMAX A1 G4 DVR is built to upgrade and simplify video surveillance across commercial, retail, and institutional sites. As a 16-channel DVR that supports up to 4K local video output, it gives security teams crisp footage for faster incident review and better situational awareness. The included 4TB hard drive and dual-bay design let you retain critical evidence on-site, while H.264 compression maximizes retention without ballooning storage costs.

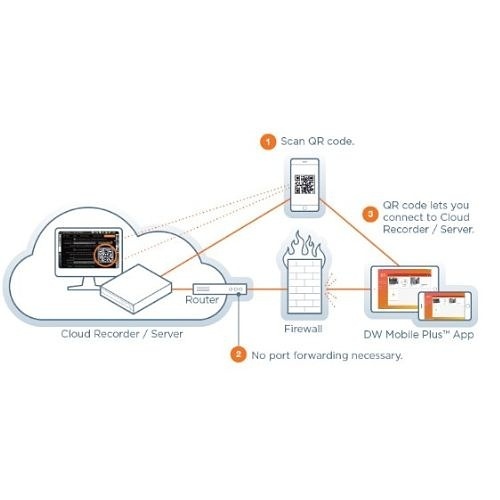

Designed for real-world monitoring, the VMAX A1 G4 supports HD-Analog, HD-TVI and standard coaxial cameras so you can modernize systems without costly re-cabling. PathFinder remote connectivity with NAT traversal and Up the Coax (UTC) camera control reduce onsite maintenance and speed troubleshooting. NDAA/TAA compliance and a 5-year limited warranty make this DVR a practical choice for enterprise and government deployments. Perfect for CCTV, security, and remote monitoring applications—add the DW-VA1G4164T to your surveillance solution to enhance coverage and simplify administration.

Features

  • Upgrade legacy coax to true 4K surveillance: capture clearer evidence and extend ROI on existing cabling with HD-over-Coax compatibility
  • Centralized, secure monitoring: 16-channel recording and PathFinder remote access simplify enterprise surveillance and off-site management
  • Save time on camera adjustments: Up the Coax (UTC) lets you configure and tune cameras from the DVR—no ladder or site visits required
  • Scalable, dependable storage: Includes a 4TB HDD with two drive bays for expanded retention and industry-grade H.264 recording
  • Compliance-ready for procurement: NDAA/TAA certified hardware and a 5-year limited warranty reduce procurement hurdles for government and enterprise projects
43 of 43 specifications
Technical specifications for Digital Watchdog DW-VA1G4164T VMAX A1 G4 UHDoC 4K 16-Channel DVR, 4TB HDD
General Information
Brand Name Digital Watchdog
Manufacturer Digital Watchdog
Product Line VMAX A1 G4
Product Name DW-VA1G416xT VMAX A1 G4 Universal HD over Coax 16-channel DVR
Product Type DVR
Product Model DW-VA1G4164T
Product Series VMAX A1 G4
Country of Origin KR
Manufacturer Part Number DW-VA1G4164T
Maximum Supported Storage Capacity 4.0TB
Technical Information
Protocols IPv4
Video Formats H.264 / AVC, MJPEG
Maximum Frame Rate 480.0fps
Number of Channels 16
Connectivity Technology Wired
Audio
Audio Encoding ADPCM
Recording Modes Schedule
Certifications
TAA Compliant Yes
Certifications CE, FCC, NDAA, TAA
Certifications & Standards CE, FCC, KC, NDAA, TAA
Display & Graphics
Maximum Video Resolution 3840 x 2160
Environmental Conditions
Operating Humidity 0-80% RH
Operating Temperature (T-T) 41-104°F
Interfaces/Ports
Serial Port Yes
Output Ports CVBS, VGA
Number of USB Ports 1
Number of Audio Line In 8
Number of Audio Line Out 1
Number of Ethernet Ports 1
Network & Communication
Ethernet Yes
Remote Management Yes
Ethernet Technology 1 Gbps (Gigabit Ethernet)
Physical Characteristics
Depth 10.58"
Width 14.96"
Height 1.77"
Dimensions 1.77" x 14.96" x 10.58", 15.15" x 12.4" x 1.88"
Power Description
Maximum Power Consumption 48.00W
Product Replacements & Other Alternatives
Model Number Replaces DW-VA1P1624T
Storage
Hard Drive Capacity 4TB
Number of Hard Drives Supported 2
Warranty
Limited Warranty 5-Year
Miscellaneous
Package Contents Mouse
Operating System Compatibility Linux
