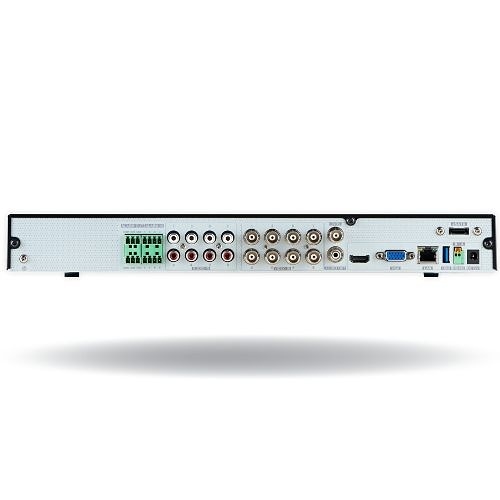

Digital Watchdog DW-VA1G486T VMAX A1 G4 Universal HD Over Coax 8-Ch DVR, No HDD, 6T
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Upgrade existing coax systems to 4K surveillance without re-cabling, lowering installation time and cost

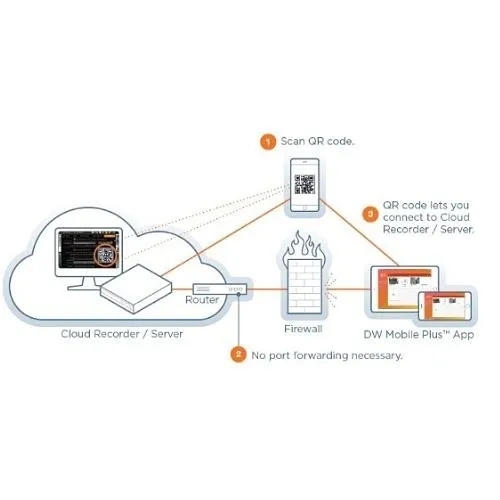

- Remote configuration and management (PathFinder, UTC) to troubleshoot and tune cameras without onsite visits
- NDAA/TAA compliant 8-channel DVR with 6TB storage for secure, long-term video retention in commercial deployments
- Fast incident review with thumbnail search, channel-swap and camera group recording to speed investigations and reduce downtime
- Mobile and CMS access (iOS/Android, C3 CMS) plus 1 GigE networking for reliable remote monitoring and centralized management
Quick Specifications
- Brand Name
- Digital Watchdog
- Manufacturer
- Digital Watchdog
- Product Line
- VMAX A1 G4
- Product Name
- Universal HD over Coax Digital Video Recorder
Frequently Bought Together
Digital Watchdog DW-VA1G486T VMAX A1 G4 Universal HD Over Coax 8-Ch DVR, No HDD, 6T
$1,143.83
11 items selected
Total: $4,580.89
Product Information Tabs
Overview
Deliver enterprise-grade surveillance using existing coax infrastructure with the Digital Watchdog DW-VA1G486T VMAX A1 G4 8-channel DVR. Designed for security-focused organizations, this Universal HD over Coax DVR captures up to 4K resolution and supports industry formats (HD-Analog, HD-TVI and standard analog) so you can upgrade video clarity without replacing cabling. With 6TB of onboard storage, NDAA/TAA compliance and a 5-year warranty, it’s built for reliable, long-term monitoring in corporate, retail, education and healthcare environments. Operational efficiency features — including PathFinder remote connectivity, Up-the-Coax (UTC) camera adjustment, thumbnail search and camera group recording — reduce onsite service calls and accelerate incident response. H.264 recording and 1 GigE networking ensure efficient bandwidth and archive management, while mobile apps and C3 CMS enable flexible remote viewing and centralized administration. The DW-VA1G486T is a practical, secure DVR choice for organizations that need high-resolution surveillance, simplified maintenance and strong compliance. Contact sales or add to your next security system deployment to improve monitoring and protect critical assets.
Features
- Upgrade existing coax systems to 4K surveillance without re-cabling, lowering installation time and cost
- Remote configuration and management (PathFinder, UTC) to troubleshoot and tune cameras without onsite visits
- NDAA/TAA compliant 8-channel DVR with 6TB storage for secure, long-term video retention in commercial deployments
- Fast incident review with thumbnail search, channel-swap and camera group recording to speed investigations and reduce downtime
- Mobile and CMS access (iOS/Android, C3 CMS) plus 1 GigE networking for reliable remote monitoring and centralized management
| General Information | |
|---|---|
| Brand Name | Digital Watchdog |
| Manufacturer | Digital Watchdog |
| Product Line | VMAX A1 G4 |
| Product Name | Universal HD over Coax Digital Video Recorder |
| Product Type | Video Surveillance Station |
| Product Model | DW-VA1G486T |
| Manufacturer Part Number | DWVA1G486T |
| Minimum Storage Drive Space | 2TB |
| Maximum Supported Storage Capacity | 6TB |
| Technical Information | |
| Protocols | DHCP, RTSP, Static fixed IP, uPNP |
| Video Formats | H.264, MJPEG |
| Storage Capacity | 6TB |
| Maximum Frame Rate | 240fps |
| Number of Channels | 8 |
| Connectivity Technology | Wired |
| Audio | |
| Audio Encoding | ADPCM |
| Recording Modes | Continuous, Emergency, Motion detection, Pre and post alarm, Quick backup, Scheduled, Sensor |
| Certifications | |
| TAA Compliant | Yes |
| Display & Graphics | |
| Maximum Video Resolution | 3840 x 2160 |
| Environmental Conditions | |
| Operating Humidity | 0-80% RH |
| Operating Temperature (T-T) | 41-104°F |
| Interfaces/Ports | |
| Serial Port | Yes |
| Output Ports | CVBS, VGA |
| Number of USB Ports | 1 |
| Number of Audio Line In | 8 |
| Number of Audio Line Out | 1 |
| Number of Ethernet Ports | 1 |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Ethernet Technology | 1 Gigabit Ethernet |
| Others | |
| Model Number Replaces | DW-VA1P86T |
| Physical Characteristics | |
| Depth | 10.6" |
| Width | 15" |
| Height | 1.8" |
| Dimensions | 1.77" x 14.96" x 10.58", 12.4" x 9.52" x 1.77" |
| Power Description | |
| Maximum Power Consumption | 48W |
| Storage | |
| Hard Drive Capacity | 6TB |
| Number of Hard Drives Supported | 2 |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Certifications | CE, FCC, NDAA, TAA |
| Package Contents | Mouse |
| Country of Origin | KR |
| Certifications & Standards | CE, FCC, KC, NDAA, TAA |
| Operating System Compatibility | Linux |
