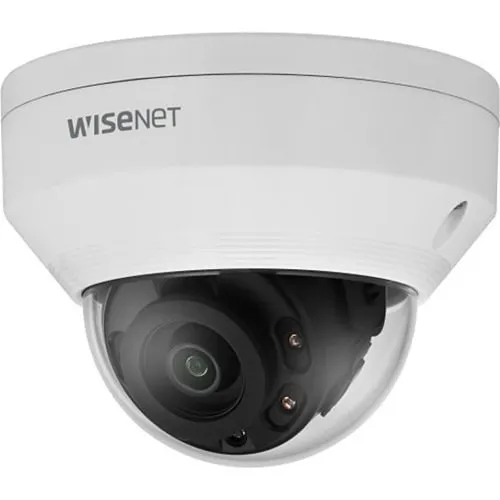

Hanwha LNV-6022R L-Series 2MP IR Vandal Dome Camera, 4mm Fixed Lens, White

SKU: LNV-6022R Hanwha Vision
Hanwha LNV-6022R 2MP Wisenet L-Series IR Vandal Dome Camera, 4mm Fixed Lens
Product images for Hanwha LNV-6022R L-Series 2MP IR Vandal Dome Camera, 4mm Fixed Lens, White. 2 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Rugged outdoor protection for continuous surveillance: IP66 weatherproofing and IK10 vandal resistance keep your camera operational in harsh environments and high-traffic sites.
  • Clear day/night monitoring to reduce blind spots: 2MP resolution with 4mm wide-angle lens and 30m IR delivers reliable identification and coverage around the clock.
  • Consistent image quality in challenging light: 120dB WDR and ICR handle strong backlight and mixed lighting for usable footage in entrances, lobbies, and parking areas.
  • Bandwidth-savvy, flexible streaming: WiseStream II with H.264/MJPEG and multiple streams lowers network load while supporting remote monitoring and recording.
  • Simple installation and scalable networking: PoE power and RJ-45 connectivity speed deployment and integrate easily with NVRs and existing IP security systems.
  • Edge recording and scene optimization: Built-in microSD support, hallway view, and motion/tamper detection enable local failover and focused surveillance where you need it most.

Quick Specifications

Product Model
LNV-6022R
Brand Name
Hanwha Vision
Product Name
2MP IR Outdoor Dome Camera
Product Type
Dome Camera
View Full Technical Specifications

Product Information Tabs

Overview

Optimize perimeter and facility security with the Hanwha Vision LNV-6022R L-Series 2MP IR vandal dome camera. Designed for demanding outdoor surveillance and public-space monitoring, this dome camera combines rugged IP66/IK10 protection with clear 1080p imaging and a 4mm fixed lens to cover wide areas with minimal installation complexity. Intelligent video features—120dB WDR and day/night IR up to 30m—ensure usable footage in high-contrast scenes and low light, while WiseStream II and H.264/MJPEG reduce bandwidth for efficient networked monitoring. Power-over-Ethernet and RJ-45 connectivity simplify wiring and scale across multi-camera deployments; on-board microSD recording adds local failover for critical sites. Ideal for retail, transportation hubs, schools, and commercial campuses, the LNV-6022R delivers dependable, low-maintenance security imaging that integrates with your VMS and NVR infrastructure. Choose this Hanwha Vision dome camera for robust outdoor surveillance and streamlined installation — contact us to specify units for your next security project.

Features

  • Rugged outdoor protection for continuous surveillance: IP66 weatherproofing and IK10 vandal resistance keep your camera operational in harsh environments and high-traffic sites.
  • Clear day/night monitoring to reduce blind spots: 2MP resolution with 4mm wide-angle lens and 30m IR delivers reliable identification and coverage around the clock.
  • Consistent image quality in challenging light: 120dB WDR and ICR handle strong backlight and mixed lighting for usable footage in entrances, lobbies, and parking areas.
  • Bandwidth-savvy, flexible streaming: WiseStream II with H.264/MJPEG and multiple streams lowers network load while supporting remote monitoring and recording.
  • Simple installation and scalable networking: PoE power and RJ-45 connectivity speed deployment and integrate easily with NVRs and existing IP security systems.
  • Edge recording and scene optimization: Built-in microSD support, hallway view, and motion/tamper detection enable local failover and focused surveillance where you need it most.
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 2MP IR Outdoor Dome Camera
Product Type Dome Camera
Product Model LNV-6022R
Product Series L
Manufacturer Part Number LNV-6022R
Technical Information
Lens Type Fixed Focus
Field of View H: 84.3°, V: 45.6°, D: 98.3°
Video Formats H.264, MJPEG
Maximum Aperture f/2.0
Maximum Frame Rate 30fps
Minimum Focal Length 4mm
Connectivity Technology Wired
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 98.43 ft
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 90% RH
Maximum Operating Temperature 131°F
Minimum Operating Temperature -22°F
Exposure
Longest Shutter Speed 2 Second
Shortest Shutter Speed 1/12,000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 4mm
Maximum Focal Length 4.0 mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Height 3.6"
Weight 0.90 lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Product Information
Diameter 4.74"

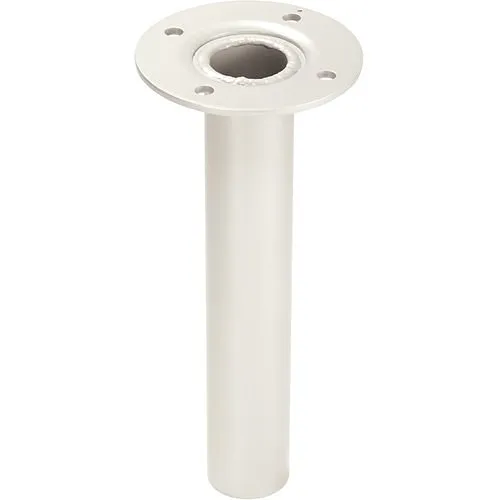

Mount Type Backbox Mount, Box Mount, Ceiling Mount, Corner Mount, Pendant Mount, Pole Mount, Wall Mount
Storage
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Miscellaneous
Features ,, 2 MP (1920 x 1080) resolution, 30fps at all resolutions (H.264), Built-in 4mm fixed lens, Day and Night (ICR), WDR (120dB), H.264, MJPEG codec support, Multiple streaming, Hallway View, WiseStream II support, IR viewable length 30m, Micro SD/SDHC memory slot (Max. 32GB), PoE, support, Tampering, Motion detection
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
