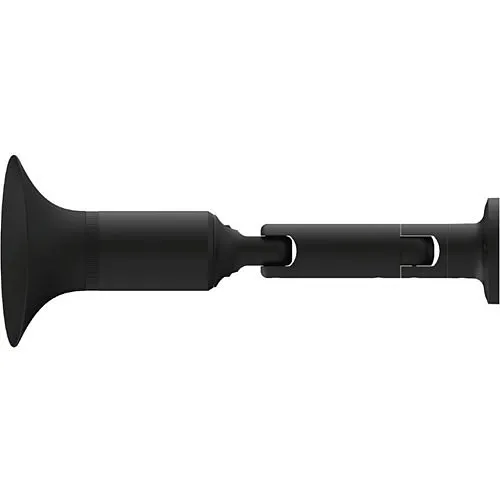

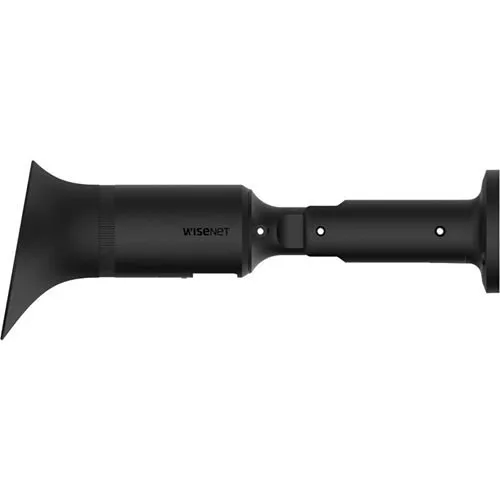

Hanwha TNO-6010M T Series 2MP Mobile Front-Facing IP Camera, 2.8mm Fixed Lens, Black

SKU: TNO-6010M Hanwha Vision
Wisenet TNO-6010M 2 Megapixel Network Camera
Product images for Hanwha TNO-6010M T Series 2MP Mobile Front-Facing IP Camera, 2.8mm Fixed Lens, Black. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Purpose-built for fleets: reliable front-facing surveillance that captures incidents and driver behavior to reduce liability and improve safety.
  • Clear, actionable video day or night: 2MP resolution at up to 60fps with 150dB WDR and a 2.8mm, 113.7° lens for wide coverage and smooth playback.
  • Rugged, all-weather reliability: IP66, IK10 and NEMA 4X-rated housing plus -30°C to +55°C operation for harsh vehicle environments.
  • Intelligent edge analytics: built-in tampering, loitering, face detection, sound classification and fog detection to prioritize important events.
  • Flexible installation & integration: adjustable dual-joint mount, PoE support, USB/analog outputs and SD storage for easy deployment in varied vehicle types.
  • Efficient bandwidth use: H.265/H.264/MJPEG with WiseStream II reduces network load while preserving critical detail for surveillance and monitoring.

Quick Specifications

Product Model
TNO-6010M
Brand Name
Hanwha Vision
Product Name
2MP Front-Facing Mobile Camera
Product Type
Mobile Camera
View Full Technical Specifications

Product Information Tabs

Overview

For fleet operators and transit authorities who need dependable in-vehicle surveillance, the Hanwha Vision TNO-6010M T Series 2MP mobile IP camera delivers crisp, mission-critical video and robust analytics in a compact, tamper-resistant package. Built as a front-facing mobile camera, it records 2MP imagery at up to 60fps through a 2.8mm fixed lens with a 113.7° horizontal field of view, ensuring clear capture of driver activity, incidents and roadway events. Wide Dynamic Range (150dB) and True Day/Night performance maintain usable footage in glare, headlights or low light, while WiseStream II and H.265 compression minimize bandwidth and storage demands. Rated IP66 and IK10 with NEMA 4X durability and an operating range from -30°C to +55°C, the TNO-6010M stands up to vibration, dust and moisture encountered in transit. Onboard analytics — including tampering, face detection, fog detection and sound classification — turn continuous video into prioritized alerts for faster incident review. NDAA-compliant and designed for easy mounting and integration, this Hanwha Vision mobile camera is ideal for buses, law enforcement vehicles, service fleets and transit systems. Contact your Hanwha reseller to specify and deploy this camera across your fleet.

Features

  • Purpose-built for fleets: reliable front-facing surveillance that captures incidents and driver behavior to reduce liability and improve safety.
  • Clear, actionable video day or night: 2MP resolution at up to 60fps with 150dB WDR and a 2.8mm, 113.7° lens for wide coverage and smooth playback.
  • Rugged, all-weather reliability: IP66, IK10 and NEMA 4X-rated housing plus -30°C to +55°C operation for harsh vehicle environments.
  • Intelligent edge analytics: built-in tampering, loitering, face detection, sound classification and fog detection to prioritize important events.
  • Flexible installation & integration: adjustable dual-joint mount, PoE support, USB/analog outputs and SD storage for easy deployment in varied vehicle types.
  • Efficient bandwidth use: H.265/H.264/MJPEG with WiseStream II reduces network load while preserving critical detail for surveillance and monitoring.
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 2MP Front-Facing Mobile Camera
Product Type Mobile Camera
Product Model TNO-6010M
Product Series T
Manufacturer Part Number TNO-6010M
Technical Information
Lens Type Fixed
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/2
Maximum Frame Rate 60fps
Minimum Focal Length 2.8mm
Connectivity Technology Wired
Field of View (Vertical) 61.5°
Field of View (Horizontal) 113.7°
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 90% RH
Maximum Operating Temperature 131°F
Minimum Operating Temperature -22°F
Exposure
Minimum Illumination 0.004 lux
Longest Shutter Speed 1/12000 Second
Shortest Shutter Speed 2 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8mm
Lens Included Yes
Maximum Focal Length 2.8mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color Black
Weight 2.58lb
Durability Dustproof, Impact Resistant, Vibration Resistant, Waterproof
Product Information
Length 14.6"
Diameter 2.4"
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Miscellaneous
Features Alarm Triggering, Auto Tracking, Built-in Mechanical ICR, Day/Night, Gain Control, Motion Detection, SD Card Local Storage, Tampering Alarm, White Balance, Wide Dynamic Range
Indoor/Outdoor Indoor, Outdoor
Country of Origin VN
Impact Protection Rating IK10
