Beale Street ICA6-B 6.5" 2-Way In-Ceiling Angled Speaker

SKU: ICA6-B Beale Street Audio

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

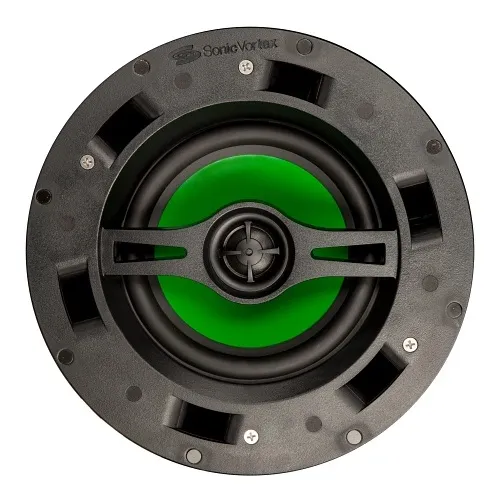

Image of DX-ICA6B
Product images for Beale Street ICA6-B 6.5" 2-Way In-Ceiling Angled Speaker. 2 image(s) available. Click on image to view full size.

Key Features

  • Aim sound precisely where it matters with the angled 6.5in driver to improve speech intelligibility for paging, security and monitoring
  • Sonic Vortex tuned enclosure delivers deeper, controlled bass and reduces sound bleed between rooms for clearer background music and announcements
  • High 91 dB sensitivity and 8 Ω impedance extract more output from low-power amplifiers, maximizing coverage in commercial installations
  • Discreet 9.4in diameter in-ceiling design installs flush and angles toward listening zones—ideal for retail, hospitality and corporate environments
  • Backed by a lifetime limited warranty for long-term reliability in demanding security and AV systems

Quick Specifications

Product Model
ICA6-B
Brand Name
Beale Street Audio
Product Name
ICA6-B Speaker
Product Type
Speaker
View Full Technical Specifications

Frequently Bought Together

Explore the details

Product information

ICA6-B

Overview

Deliver targeted, room-filling audio with precision using the Beale Street Audio ICA6-B 6.5in 2-way in-ceiling angled speaker. Engineered for commercial, hospitality and security environments, the ICA6-B uses patented Sonic Vortex technology — a compact, integrated tuned enclosure — to produce a 6–9 dB boost in mid-lower bass while preventing sound bleed into adjacent spaces. The 6.5in woofer and 2-way crossover extend frequency response from 46 Hz to 22 kHz, and 91 dB sensitivity with an 8 ohm load ensures strong output even with modest amplifiers. The angled mount directs sound to critical listening areas for clearer paging, monitoring and surveillance audio, while the low-profile 9.4in diameter housing keeps installations discreet. Durable construction and a lifetime limited warranty make this speaker a reliable choice for continuous operation in retail, corporate paging, security monitoring and background music systems. Specify the ICA6-B to enhance speech intelligibility and tighten bass performance—order now or contact our integration team for system design assistance.

Features

  • Aim sound precisely where it matters with the angled 6.5in driver to improve speech intelligibility for paging, security and monitoring
  • Sonic Vortex tuned enclosure delivers deeper, controlled bass and reduces sound bleed between rooms for clearer background music and announcements
  • High 91 dB sensitivity and 8 Ω impedance extract more output from low-power amplifiers, maximizing coverage in commercial installations
  • Discreet 9.4in diameter in-ceiling design installs flush and angles toward listening zones—ideal for retail, hospitality and corporate environments
  • Backed by a lifetime limited warranty for long-term reliability in demanding security and AV systems
25 of 25 specifications
Technical specifications for Beale Street ICA6-B 6.5" 2-Way In-Ceiling Angled Speaker
General Information
Brand Name Beale Street Audio
Manufacturer Beale Street Audio
Product Name ICA6-B Speaker
Product Type Speaker
Product Model ICA6-B
Country of Origin CN
Manufacturer Part Number ICA6-B
Technical Information
Impedance 8Ohm
Sensitivity 91dB
Speaker Size 6.50"
Crossover Type 2-Way
Wireless Speaker No
Audio
Maximum Frequency Response 46Hz
Minimum Frequency Response 46Hz
Environmental Conditions
Sound Emission 9dB
Physical Characteristics
Size 6.50"
Color Black
Depth 6.80"
Width 9.40"
Height 6.80"
Material PP
Product Information
Length 9.40"
Diameter 9.40"
Mount Type In-ceiling Mount, In-wall Mount
Warranty
Limited Warranty Lifetime
