Beale Street ICA6-BB 6.5" Carbon Fiber 2-Way In-Ceiling Angled Speaker Powered by Sonic Vortex

SKU: ICA6-BB Beale Street Audio

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

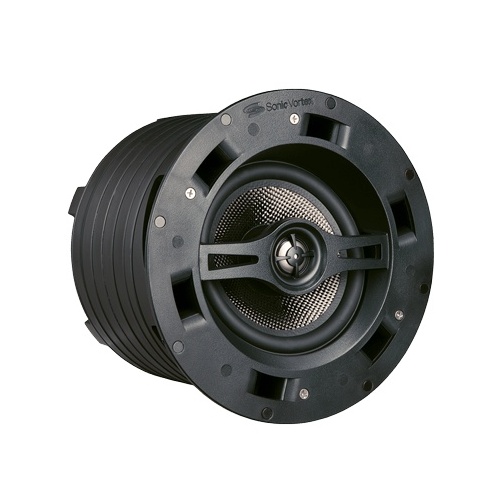

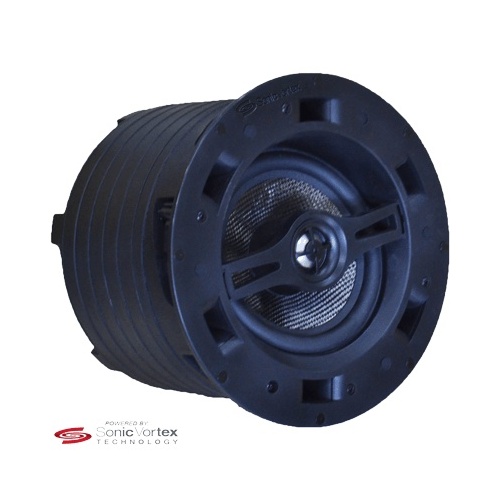

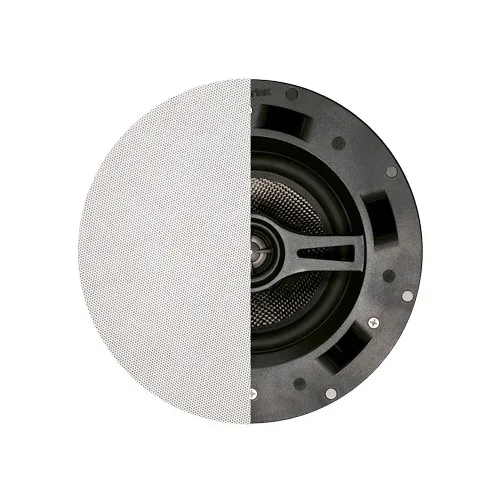

Image of DX-ICA6BB
Product images for Beale Street ICA6-BB 6.5" Carbon Fiber 2-Way In-Ceiling Angled Speaker Powered by Sonic Vortex. 4 image(s) available. Click on image to view full size.

Key Features

  • Sonic Vortex tuned enclosure delivers deep, room-filling bass from a compact in-ceiling package, so you get impactful low end without bulky cabinets
  • Angled LCR design directs sound to the listening area for clearer dialogue and targeted coverage in conference rooms, retail, or monitoring stations
  • Carbon fiber 6.5" driver provides crisp highs and durable performance for long-term voice clarity in AV, security, and surveillance systems
  • High 89 dB sensitivity and 8 ohm impedance extract more output from your amplifier, reducing equipment costs and improving system efficiency
  • Shallow 6.8" depth and reversible in-ceiling/in-wall mount simplify retrofit installations and keep ceilings tidy while minimizing sound bleed to adjacent rooms

Quick Specifications

Product Model
ICA6-BB
Brand Name
Beale Street Audio
Product Name
ICA6-BB Speaker
Product Type
Speaker
View Full Technical Specifications

Frequently Bought Together

Explore the details

Product information

ICA6-BB

Overview

Bring powerful, controllable sound to your AV, security, or surveillance installation with the Beale Street Audio ICA6-BB 6.5" angled in-ceiling speaker. Designed for LCR placement and targeted coverage, this carbon fiber 2-way speaker uses patented Sonic Vortex technology to create a compact tuned enclosure that boosts mid-lower bass by 6–9 dB and minimizes sound bleed between rooms — ideal for monitoring stations, retail paging, or courtroom and classroom audio. The 6.5" driver and 2-way crossover deliver a wide 46 Hz–22 kHz frequency range and clear vocal reproduction, while 89 dB sensitivity and an 8 ohm impedance maximize output with less amplifier power. At just 6.8" depth, the ICA6-BB fits tight ceilings and retrofit jobs without sacrificing performance, and the angled baffle focuses sound where listeners are, improving intelligibility for voice and surveillance audio. Backed by a lifetime limited warranty, it’s built for long-term commercial and residential deployments. Add the Beale Street ICA6-BB to your next AV, security, or monitoring project for precise, powerful in-ceiling audio.

Features

  • Sonic Vortex tuned enclosure delivers deep, room-filling bass from a compact in-ceiling package, so you get impactful low end without bulky cabinets
  • Angled LCR design directs sound to the listening area for clearer dialogue and targeted coverage in conference rooms, retail, or monitoring stations
  • Carbon fiber 6.5" driver provides crisp highs and durable performance for long-term voice clarity in AV, security, and surveillance systems
  • High 89 dB sensitivity and 8 ohm impedance extract more output from your amplifier, reducing equipment costs and improving system efficiency
  • Shallow 6.8" depth and reversible in-ceiling/in-wall mount simplify retrofit installations and keep ceilings tidy while minimizing sound bleed to adjacent rooms
26 of 26 specifications
Technical specifications for Beale Street ICA6-BB 6.5" Carbon Fiber 2-Way In-Ceiling Angled Speaker Powered by Sonic Vortex
General Information
Brand Name Beale Street Audio
Manufacturer Beale Street Audio
Product Name ICA6-BB Speaker
Product Type Speaker
Product Model ICA6-BB
Country of Origin CN
Manufacturer Part Number ICA6-BB
Technical Information
Impedance 8Ohm
Sensitivity 89dB
Speaker Size 6.50"
Crossover Type 2-Way
Wireless Speaker No
Audio
Maximum Frequency Response 40Hz
Minimum Frequency Response 46Hz
Environmental Conditions
Sound Emission 9dB
Physical Characteristics
Size 6.50"
Color Black
Depth 6.80"
Width 9.40"
Height 6.80"
Weight 7.00lb
Material Carbon Fiber
Product Information
Length 9.40"
Diameter 9.40"
Mount Type In-ceiling Mount, In-wall Mount
Warranty
Limited Warranty Lifetime
