Digital Watchdog DW-VG492T4P VMAX IP G4 4K 9-Channel NVR with Bonus Channels, 2TB
Image of 5
Key Features
- Rapid deployment and simplified monitoring: go from power-up to live surveillance in minutes with built-in PoE and automatic device discovery
- High-resolution evidence capture: record up to 4K (3840×2160) at 30 fps across 9 camera channels (plus bonus channels) for clear forensic footage
- Secure, compliant operation: NDAA/TAA certified with CCIP/TLS encryption and remote access controls to protect your security network
- Scalable onsite storage: 2TB internal HDD with up to 12TB supported for reliable retention and quick local playback

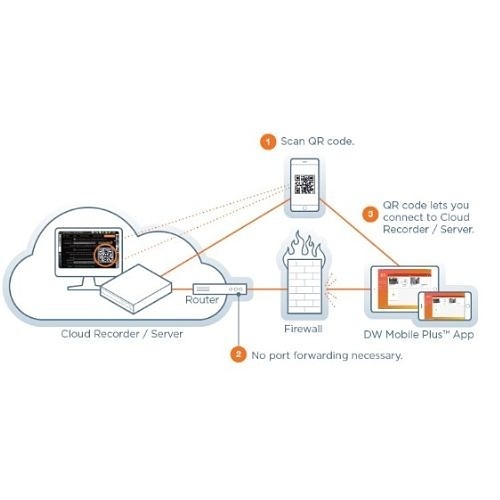

- Remote-first management: PathFinder NAT traversal, DW Witness mobile camera support and RTSP streaming for flexible remote monitoring and integration
Quick Specifications
- Product Model
- DW-VG492T4P
- Brand Name
- Digital Watchdog
- Product Line
- VMAX IP G4
- Manufacturer Part Number
- DW-VG492T4P
Frequently Bought Together
Digital Watchdog DW-VG492T4P VMAX IP G4 4K 9-Channel NVR with Bonus Channels, 2TB
$774.46
13 items selected
Total: $6,882.34
Explore the details
Product information
DW-VG492T4P
Overview
Designed for fast, reliable site surveillance, the Digital Watchdog VMAX IP G4 DW-VG492T4P is a 9-channel network video recorder (NVR) built to simplify security management for businesses and integrators. This NDAA/TAA-compliant NVR combines 4K recording capability (up to 3840×2160 at 30 fps) with a 2TB internal drive, delivering crisp evidence-grade video and dependable onsite retention. Built-in PoE and automatic device discovery speed installation, while CCIP system encryption via TLS and enterprise-grade protocols (RTSP, DHCP, DDNS) protect your network from external threats. The unit supports ONVIF cameras and bonus channels for flexible expansion, and PathFinder remote connection plus DW Witness mobile support enable fast, secure remote monitoring from smartphones and tablets. With a compact rack-friendly design and a 5-year limited warranty, the DW-VG492T4P is ideal for retail, education, healthcare, and commercial facilities that need compliant, high-performance video surveillance. Upgrade your site security with a scalable, easy-to-manage NVR solution—contact your reseller to deploy this Digital Watchdog recorder in your monitoring system.
Features
- Rapid deployment and simplified monitoring: go from power-up to live surveillance in minutes with built-in PoE and automatic device discovery
- High-resolution evidence capture: record up to 4K (3840×2160) at 30 fps across 9 camera channels (plus bonus channels) for clear forensic footage
- Secure, compliant operation: NDAA/TAA certified with CCIP/TLS encryption and remote access controls to protect your security network
- Scalable onsite storage: 2TB internal HDD with up to 12TB supported for reliable retention and quick local playback
- Remote-first management: PathFinder NAT traversal, DW Witness mobile camera support and RTSP streaming for flexible remote monitoring and integration
| General Information | |
|---|---|
| Brand Name | Digital Watchdog |
| Product Line | VMAX IP G4 |
| Product Model | DW-VG492T4P |
| Manufacturer Part Number | DW-VG492T4P |
| Minimum Storage Drive Space | 2TB |
| Maximum Supported Storage Capacity | 12TB |
| Technical Information | |
| Protocols | DDNS, DHCP, RTSP, Static fixed IP, UPnP |
| Video Formats | H.264, MJPEG |
| Storage Capacity | 2TB |
| Power Consumption | 60W |
| Maximum Frame Rate | 270 fps |
| Number of Channels | 9 |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 8MP |
| Audio | |
| Recording Modes | continuous, Emergency, Motion detection, Pre and post alarm, Quick backup, Scheduled, sensor |
| Certifications | |
| TAA Compliant | Yes |
| Controllers | |
| RAID Levels | No RAID |
| Display & Graphics | |
| Maximum Video Resolution | 3840 x 2160 |
| Environmental Conditions | |
| Operating Humidity | 10-90% RH |
| Operating Temperature (T-T) | 32-113°F |
| Interfaces/Ports | |
| Serial Port | Yes |
| Output Ports | VGA |
| Number of USB Ports | 1 |
| Number of Audio Line Out | 1 |
| Number of Ethernet Ports | 1 |
| Media & Performance | |
| Data Transfer Rate | 40 Mbps |
| Network & Communication | |
| Remote Management | Yes |
| Ethernet Technology | 1 Gigabit Ethernet |
| Others | |
| Model Number Replaces | DW-VP92T4P |
| Physical Characteristics | |
| Depth | 9.8" |
| Width | 11.81" |
| Height | 1.77" |
| Weight | 2.64 lb |
| Dimensions | 1.77" x 11.81" x 9.8" |
| Power Description | |
| PoE Budget | 30W |
| Input Voltage | 48V DC |
| Storage | |
| Hard Drive Capacity | 2TB |
| Number of Hard Drives Supported | 1 |
| TBD | |
| Amperage | 2.5A |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Certifications | CE, FCC, NDAA, TAA |
| Package Contents | Mouse |
| Environmental Certification | CE, FCC, KCC, TAA |
